Details

Customizable with programming languages, such as the Macro and Lua languages, the T419S presents limitless possibilities to aid your weighing operations. With the ability to add additional option cards, the T419S provides everything you need for optimum performance.

Presenting the perfect mix of rugged, versatile, programmable performance, and an affordable price point for all, B-TEK Scales unveils the new T-Series indicators. Designed for industrial applications that require advanced weighing routines and high connectivity.

INDICATOR INPUT: Analog

PANEL MOUNT DIMENSIONS
Cut Out: W = 10.56" H = 8.31"
Bezel: W = 11.5" H = 9.25"
Depth: 3.625"

**Panel Mount Ac Power Adapter (825-250078) is required with Panel Mount Purchase. Available in the "Options and Accessories" Tab**

Specifications

  • NTEP COC: 16-112
  • UL Listed E487985
  • Freely programmable via LUA and GSE Macro script

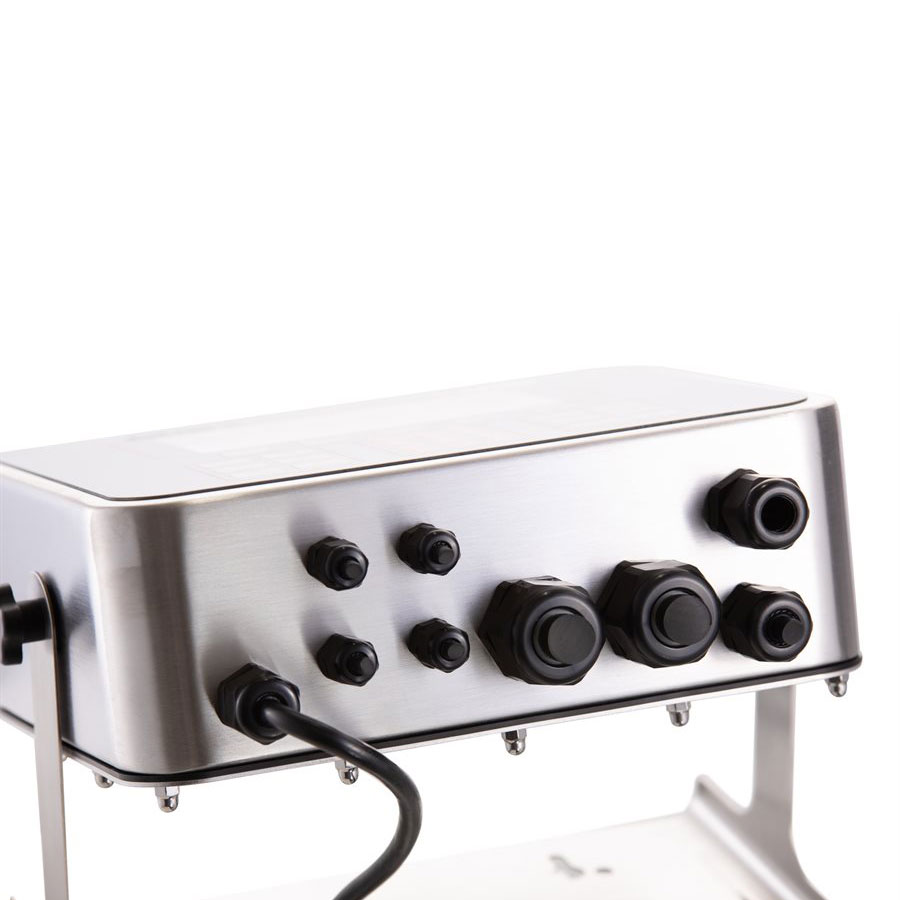

  • T419S stainless (IP69K) desktop enclosure with swivel bracket
  • T419SP stainless (IP66) panel mount enclosure
  • Supports up to 5 scales (with optional input cards)
  • 320 x 160 wide angle, high brightness LCD graphic display
  • 29-button keypad w/ audible confirmation of press
  • Easy to navigate configuration menus
  • Extensive built-in self diagnostics
  • Battery backed time/date/year
  • Units: pounds, kilograms, once, gram, lb/oz, ton, custom
  • Scale input digital filtering
  • (3) RS-232 serial ports
  • (1) Ethernet: TCP/IP, Ethernet IP, Modbus/TCP
  • (2) USB Host: printer, flash memory, keyboard
  • (3) logic level inputs
  • (3) set point outputs, open collector
  • (16) external I/O via optional interface
  • Drive up 32 load cells
  • 67,108,864 counts per mV/V per second
  • Conversion rate 100 Hz
