Details

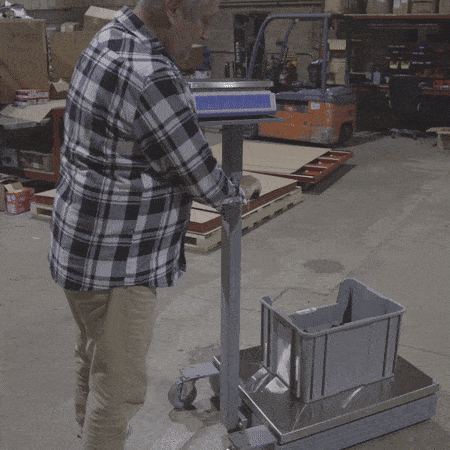

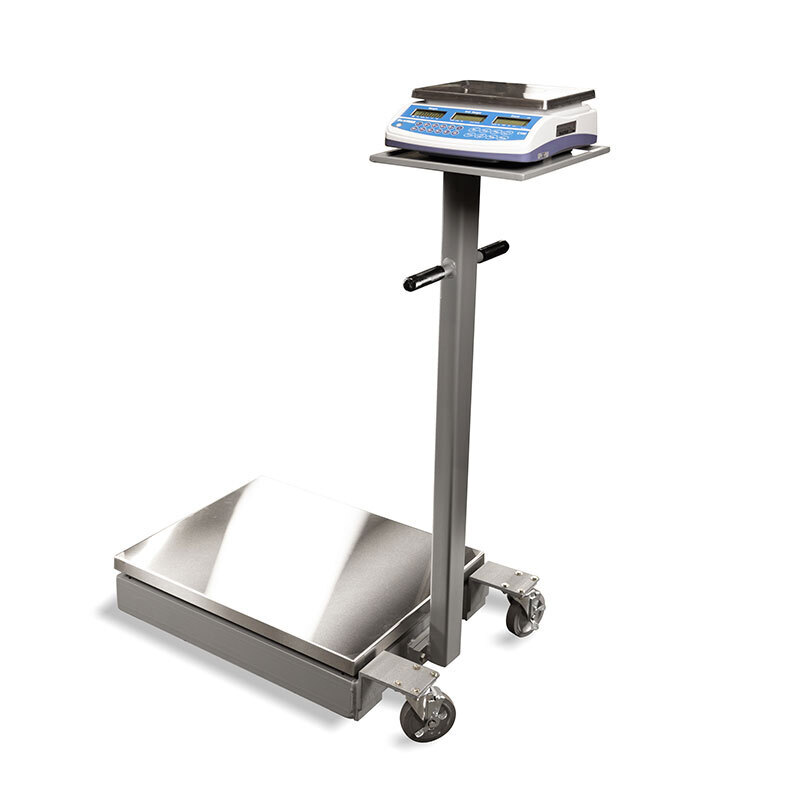

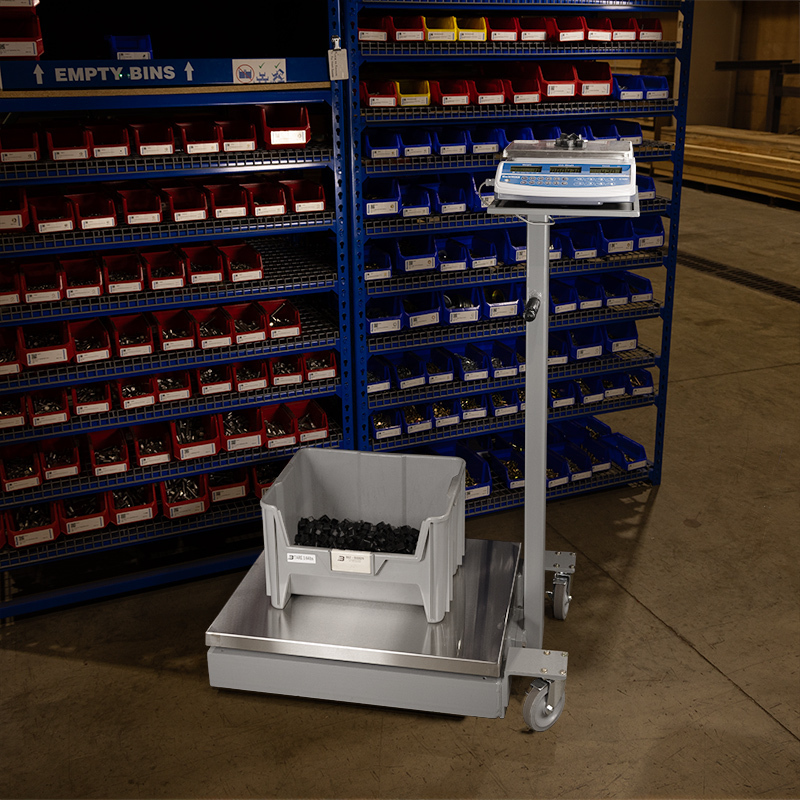

The B-TEK Mobile Inventory Counting Scale is designed for inventory applications when moving the scale is easier than moving the items being counted. With inboard wheels and lockable rear swivel casters, this scale offers effortless maneuverability, even in tight spaces. Constructed from durable painted carbon steel and a 304 stainless steel platter, the Mobile Inventory Counting Scale comes factory calibrated and ready to count in 250, 500, and 1,000 lb capacities. This versatile scale comes paired with a T104P Indicator or C100 Counting scale for precise piece weight sampling.

Specifications

  • NTEP Certificate of Conformance: 24-037 "Base Only"
  • Type: Portable single point weighing platform
  • Scale Capacity: 250, 500 and 1,000 lb
  • Platform Height: 6-9/16” nominal
  • Available Sizes: 24” x 18” & 30” x 24”
  • Weighbridge: Heavy duty structural channel base frame and structural tube spider
  • Mobility: (2) fixed in-board and (2) rear mounted swivel wheels
  • Column: 48” tall structural tube column with handle grips
  • Platter: 304 stainless steel
  • Load Cell: Anodized aluminum “brick type” single point load cell, Environmentally sealed (IP67), 350 Ohms, 2.0 mV/V, FM Approved

Frequently Asked Questions

2-Years on weighbridge steel structure, 1-Year on the C100/Indicator and load cell
