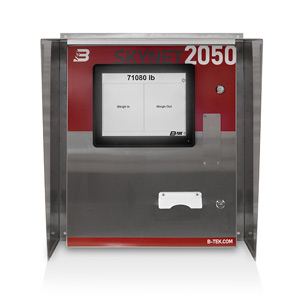

The SKYNET 2050 Self-Service Kiosk puts the power of computer programming and flexibility together and packages it all into a compact, secure, unattended kiosk. It is pre-loaded with truck in/out software and ready to be connected to an NTEP-approved weight indicator at your scale house or remotely mounted in an enclosure at the scale.

This system can easily integrate into ScaleSoft and our unattended software for more customized automated solutions. It features a 12.1" touchscreen display with 1000 nit brightness that can easily be viewed in sunlight. The large 20" x 24" x 10" enclosure provides plenty of room for auxiliary systems such as card readers, intercoms, cameras and network equipment. The included all-weather shroud protects against the elements, improves screen visibility and prevents physical damage from trucks. Application programs are endless in the case of using standard Microsoft C# or VB .NET languages while performing custom software programming.

Specifications

  • Built in mini PC with 128GB Storage / 8GB RAM
  • Compatible with any B-TEK indicator
  • STIO software included, link to Scalesoft unattended system, or custom application
  • CE, FCC, and UL Approved Components
  • Transmit weight data via ethernet or optional USB to RS232/RS422
  • Processor speed 2.4 GHz Base, 3.3GHz Max
  • 12.1" IP65 LED capacitive touch display with anti glare surface treatment
  • 1000+ cd/m² brightness for increased visibility even at extremely bright environmental conditions
  • Maximum showable resolution 1920×1080
  • Visual angle horizontal/vertical (160/160°)
  • Backlight / Backlight lifetime (hours) LED / 40,000
  • AC surge suppressor and power disconnect
  • (2) 10/100 BaseT Ethernet onboard
  • (3) USB 3.1 (1) USB 2.0 Ports
  • Includes Wireless USB Keyboard with Mouse
  • (1) HDMI Port (2) Display ports
  • Power supply: 110-230 VAC
  • Enclosure:
  • 304 stainless steel outdoor enclosure
  • Keyed enclosure access door
  • Protective secondary “hood” cover 304 stainless steel
  • Built-in heat / cool thermal control devices
  • User programmable displays, icons and graphics and layout
  • Printer:
  • Thermal paper receipt printer
  • Large paper roll capacity—3.15” receipt width
  • Jam-proof automatic cutter and tensioning system
  • Illuminated receipt outlet slot
  • Internal uncollected receipt storage area
  • Optional Reader Devices:
  • Multiple user identification devices available
  • Optical bar code readers (swipe card or paper printed)
  • Proximity (RFID) reader or reader / writer (card or key fob)
  • Magnetic strip reader (swipe card)
  • Reader device securely mounted into front panel of enclosure
  • Optional Features:
  • VOIP intercom system
  • Wifi or network bridge
  • Cellular network interface UMTS / GPRS / EDGE / GSM / MSPD
  • Radio modem 2.4 GHz
  • USB to Serial Converter
  • I/O Module
  • Scale Soft Unattended System
  • Pin Hole or Bullet Camera
  • Radiation Detector
Loading Resources ...

Options & Accessories

Loading Options & Accessories ...

Frequently Asked Questions

2 - Year Warranty on Hardware, Software not included

Industries

Case Studies

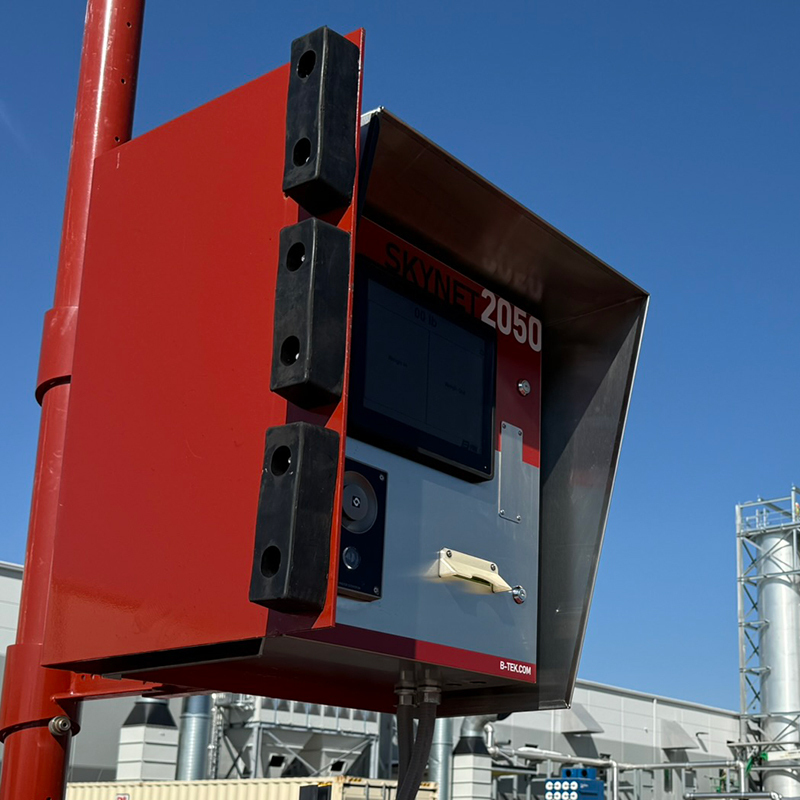

RFID Automated Skynet DD2050 Truck Scale Kiosk System
