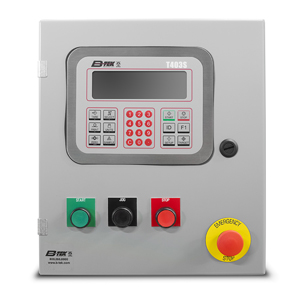

T403S Batch Controller Package
https://www.b-tek.com/products/weighing-indicators/t400-series/t403s-batch-controller-package
Share this product beyond Facebook and Twitter!
Product Code:
825-200122
The B-TEK T403S Batch Controller Package is a versatile, industrial-grade solution for seamless batching across various filling and extraction processes. Equipped with a complete 24-button keypad, the T403S performs essential batching functions like two-speed filling, three-ingredient filling, fill/discharge operations, manual and auto preacts and negative filling. Engineered for easy installation, this controller is adaptable and supports both independent set-point filling and precise manual adjustments.
- Complete Keypad Functionality - Supports two-speed filling, multi-ingredient batching and discharge operations

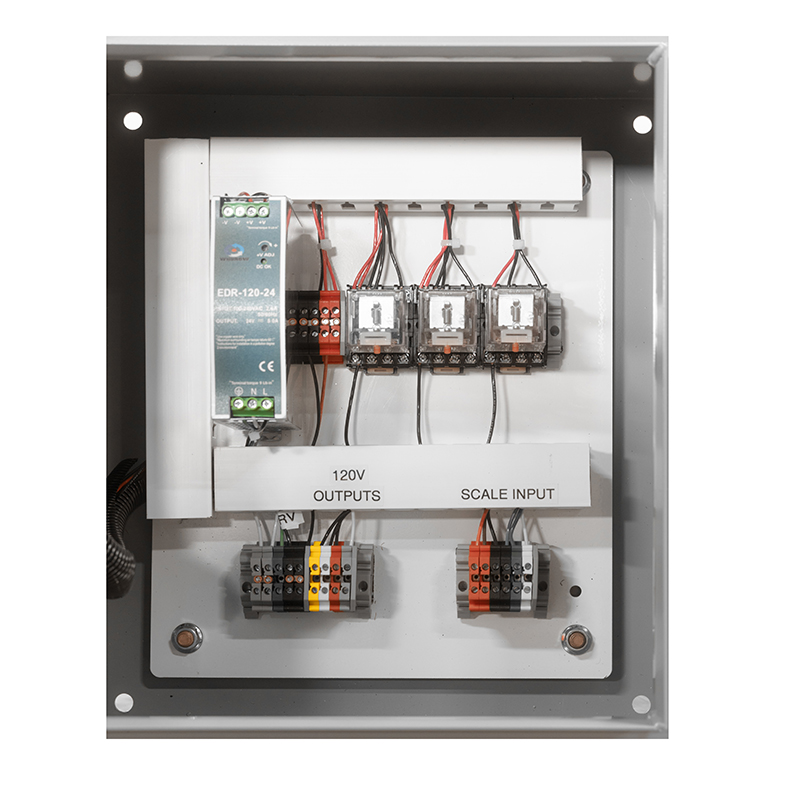

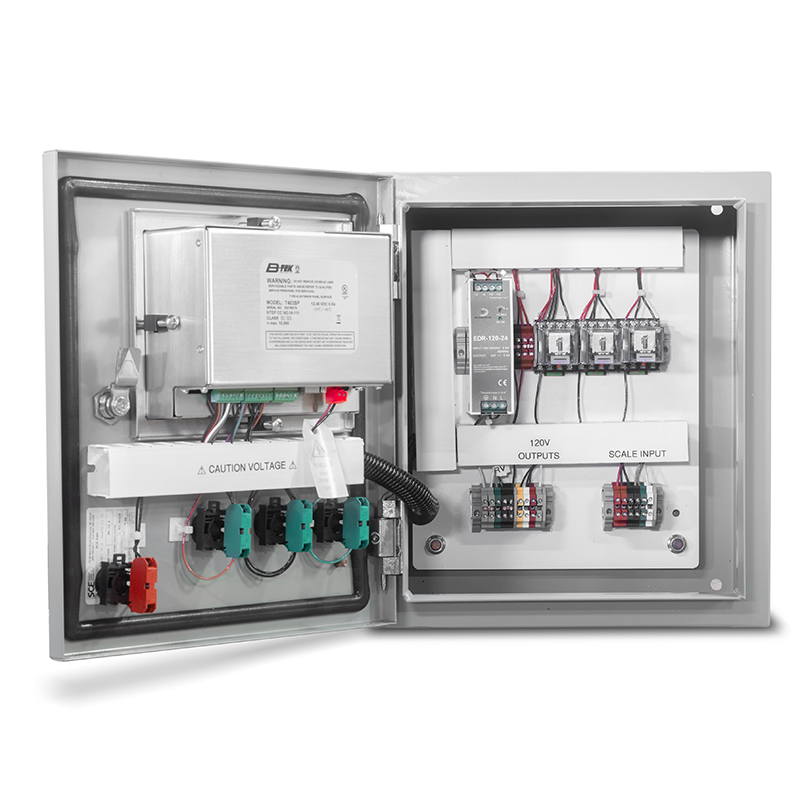

- Easy Installation - Pre-wired with terminal strips for straightforward connectivity
- Emergency Stop - Quick-stop mushroom button ensures safe operation
- Multi-Process Compatible - Suitable for various batching applications without retooling
- Comprehensive Connectivity - USB and Ethernet ports allow seamless integration
Details
The B-TEK T403S Batch Controller Package is a versatile, industrial-grade solution for seamless batching across various filling and extraction processes. Equipped with a complete 24-button keypad, the T403S performs essential batching functions like two-speed filling, three-ingredient filling, fill/discharge operations, manual and auto preacts and negative filling. Engineered for easy installation, this controller is adaptable and supports both independent set-point filling and precise manual adjustments. Key connectivity options include RS232, USB and optional wireless Ethernet, enabling easy integration with printers, computers and other devices. Built with operator-friendly features like auto-tare and an emergency stop button, the T403S delivers reliable, safe and efficient batching.
Easily configured for:
• Two speed single ingredient filling
• Ingredient filling (up to three ingredients)
• Independent set-points filling
• Fill / discharge operation
• Manual or auto preacts
• Negative filling operation
• Two speed single ingredient filling
• Ingredient filling (up to three ingredients)
• Independent set-points filling
• Fill / discharge operation
• Manual or auto preacts
• Negative filling operation
Features include:

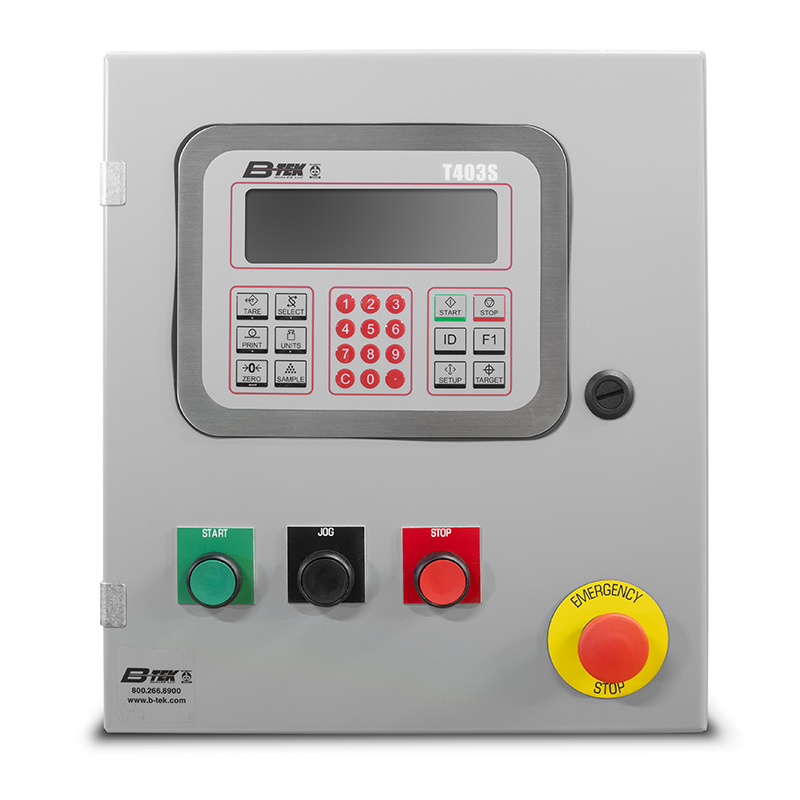

• Emergency stop, large mushroom switch provides quick operator access
• Auto-tare on start up to allow net weight filling
• Momentary jog to allow operator to top off manually in the event of an under fill or a desired increase
• RS232 (2), USB host, and ethernet ports for connection to a printer, computer or other peripheral
• Emergency stop, large mushroom switch provides quick operator access
• Auto-tare on start up to allow net weight filling
• Momentary jog to allow operator to top off manually in the event of an under fill or a desired increase
• RS232 (2), USB host, and ethernet ports for connection to a printer, computer or other peripheral
Specifications
- NTEP COC: 16-111
- UL Listed E487985
- T403SP stainless (IP66) panel mount enclosure
- Enclosure Size: 16" x 14" x 8"
- Powder Coated Mild Steel IP66 Enclosure
- 240 VAC DPDT 10 Amp dry contact relays
- 120 VAC Control Voltage Standard, or 24 VDC Optional
- 7-digit LCD high contrast green on black display, 0.8” digit
- 24-button chemical resistant polycarbonate keypad
- Easy to navigate configuration menus
- Extensive built-in diagnostic screens
- Battery backed time/date/year
- Units: pounds, kilograms, once, gram, lb/oz, custom
- Scale input digital filtering
- (2) RS-232 serial port
- (1) Ethernet: TCP/IP, Ethernet IP, Modbus/TCP
- (1) USB host: flash memory
- (3) logic level inputs
- (3) set point outputs, open collector
- Connect up (6) 350 ohm load cells / (12) 700 ohm
