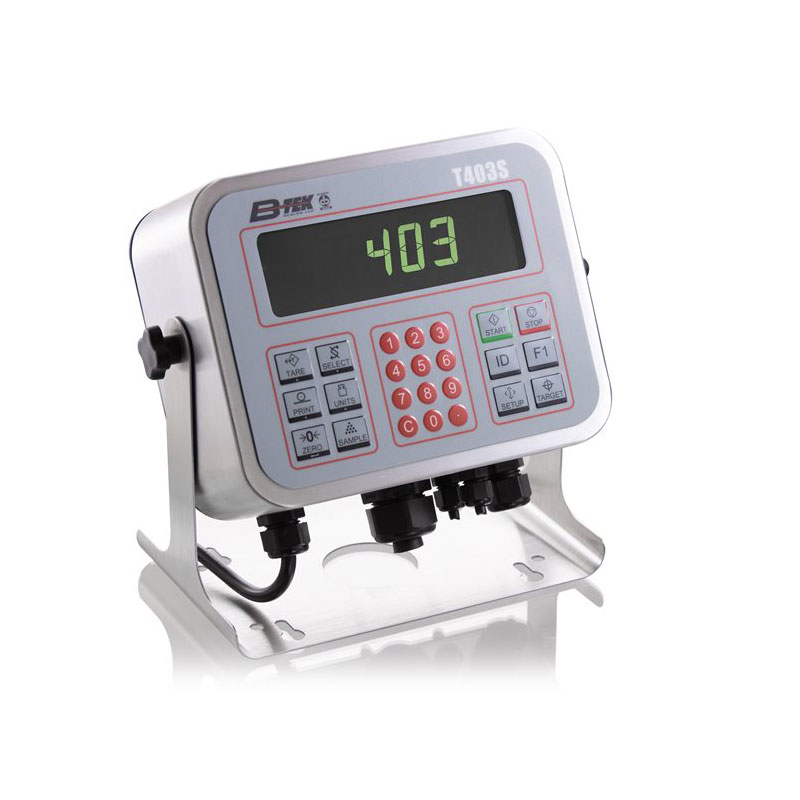

T403S Indicator
With a full keypad, Ethernet IP & TCP/IP connection, and optional wireless Ethernet, the T403S is pivotal for flawless connectivity.
Details
Boasting a complete application suite with an affordable price point, the T403S indicator will analyze, store, display, and transmit data across a range of applications to create the most efficient weighing operations for your needs. With a full keypad, USB connection, and optional wireless Ethernet, the T403S is pivotal for flawless connectivity.
Presenting the perfect mix of rugged, versatile, programmable performance, and an affordable price point for all, B-TEK Scales unveils the new T-Series indicators. Designed for industrial applications that require advanced weighing routines and high connectivity.
Built-in applications include: general weighing, general weighing with accumulation, checkweighing, counting, peak measurement, batching and remote display.
PANEL MOUNT DIMENSIONS
Cut Out: W = 7.75" H = 6.00"
Bezel: W = 8.69" H = 6.94"
Depth: 3.49"
**Panel Mount Ac Power Adapter (825-250078) is required with Panel Mount Purchase. Available in the "Options and Accessories" Tab**
Specifications
- NTEP COC: 16-111
- UL Listed E487985

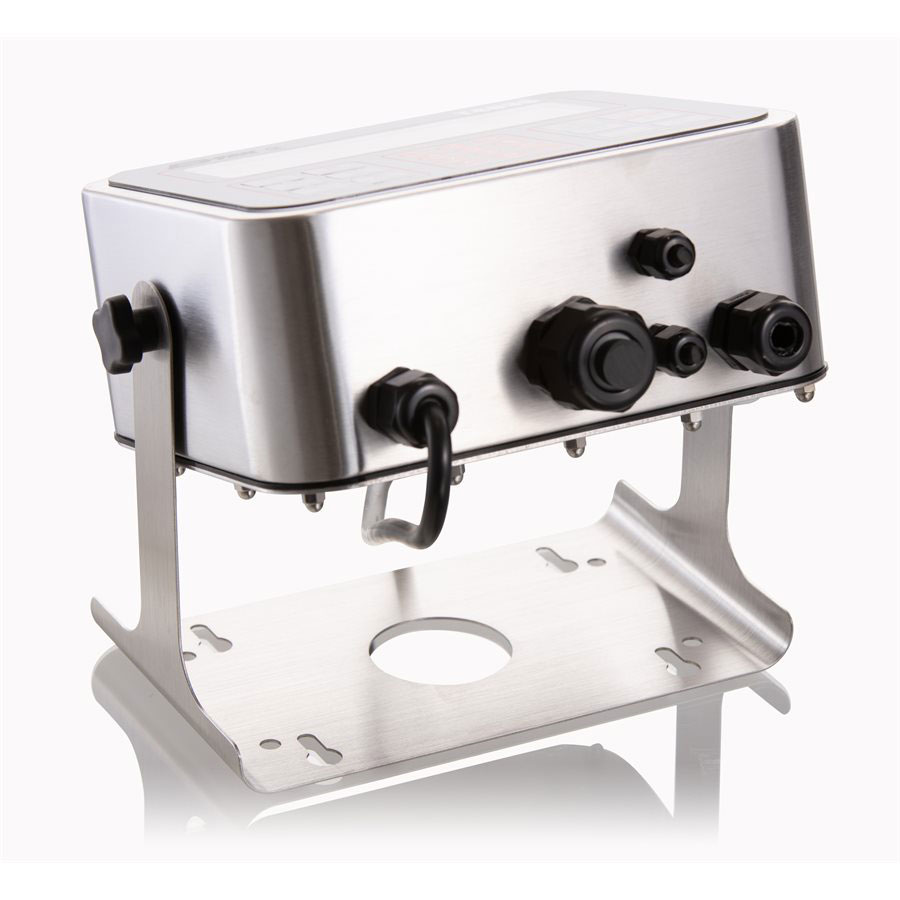

- Stainless steel (IP69K) enclosure with swivel bracket
- T403SP stainless (IP66) panel mount enclosure
- 7-digit LCD high contrast green on black display, 0.8” digit
- 24-button chemical resistant polycarbonate keypad
- Easy to navigate configuration menus
- Extensive built-in diagnostic screens
- Battery backed time/date/year
- Units: pounds, kilograms, once, gram, lb/oz, custom
- Scale input digital filtering
- (2) RS-232 serial port
- (1) Ethernet: TCP/IP, Ethernet IP, Modbus/TCP
- (1) USB host: printer, flash memory
- (3) logic level inputs
- (3) set point outputs, open collector
- IP Rating: IP69K
- Connect up (6) 350 ohm load cells / (12) 700 ohm
- 53,687,100 counts per mV/V per second
- Conversion rate 80 Hz
IP Rating
- IP69K
