T405S Axle Weighing Kiosk Package
The T405S Axle Weighing Kiosk Package is designed to provide a safe and efficient truck weighing solution. This system allows drivers to weigh their trucks without exiting the vehicle, reducing safety risks and increasing throughput. By following the integrated red/green traffic signals, drivers are easily guided through the weighing process. Once complete, they pull forward to the kiosk, where a printed transaction ticket is generated, ensuring seamless operation.
- IP66 Weather-Resistant Enclosure - Ensures durability and protection in outdoor environments
- High-Speed Thermal Printer - Generates clear and fast printed tickets for drivers
- 2" Remote Display with Traffic Control - Guides drivers through the weighing process with red/green signal lights
- Mounting Pole with Hardware - Includes a sturdy 10' pole with a 3.5" diameter for secure installation
- Customizable Functionality - Freely programmable via LUA and GSE macro scripting for tailored operations
Details
The T405S Axle Weighing Kiosk Package is designed to provide a safe and efficient truck weighing solution. This system allows drivers to weigh their trucks without exiting the vehicle, reducing safety risks and increasing throughput. By following the integrated red/green traffic signals, drivers are easily guided through the weighing process. Once complete, they pull forward to the kiosk, where a printed transaction ticket is generated, ensuring seamless operation.

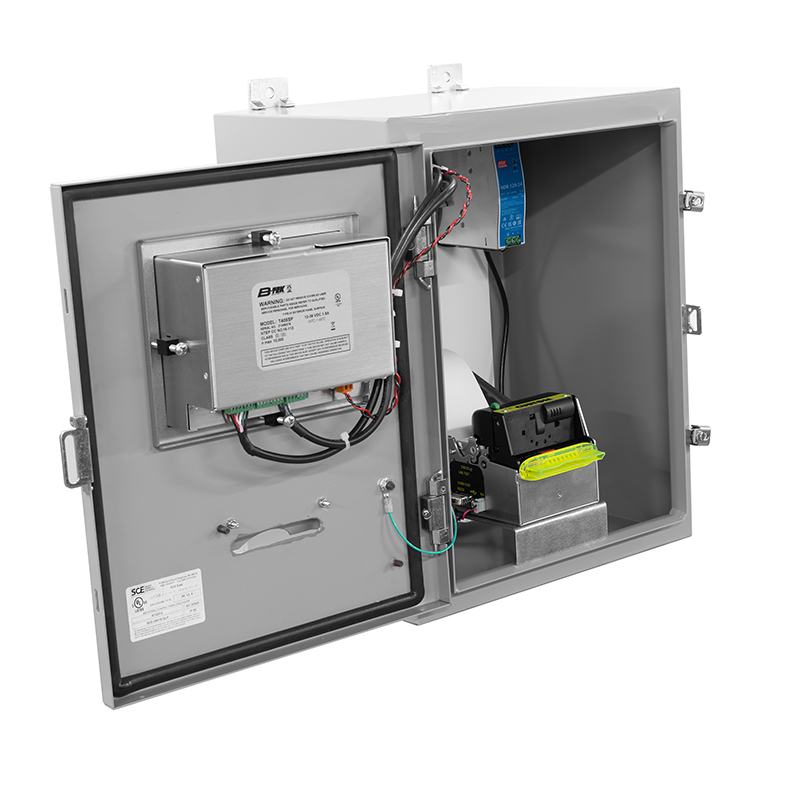

Package includes:
- IP 66 Weather-Resistant Enclosure
- T405P Indicator
- B-TEK Axle Weighing Application
- High-Speed Thermal Printer

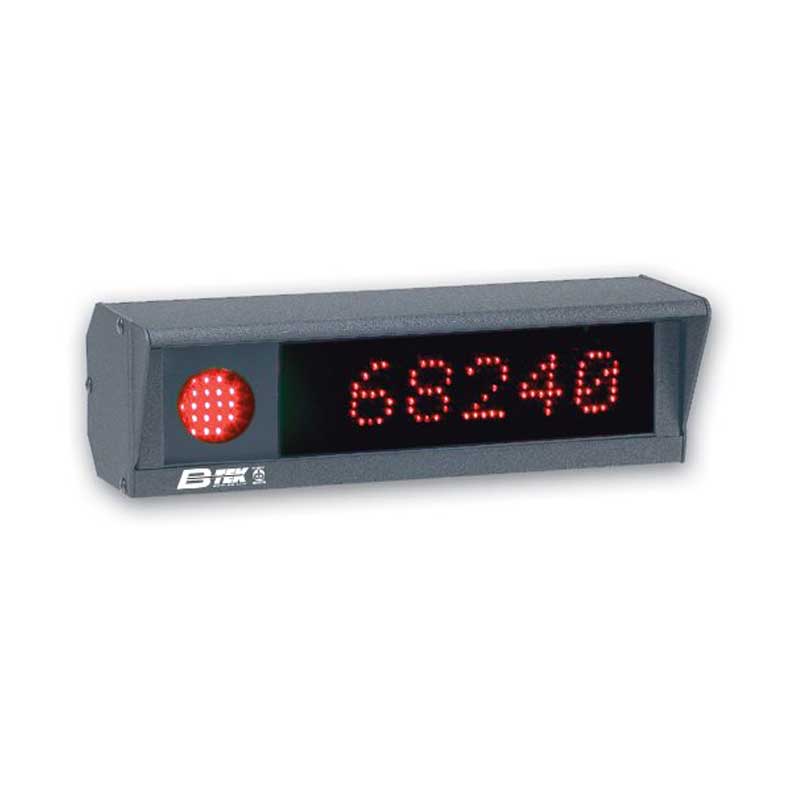

- 2" Remote Display with Traffic Control
- Power Supply
- Mounting Pole with Hardware(10' h, 3.5" diameter)
- 100' Home Run Cable
- Flex Conduit Fittings and Terminal Strips
Specifications
- NTEP COC: 16-112 (Not approved for split weighing)
- UL Listed E487985
- Drive up 16 analog load cells
- Freely programmable via LUA and GSE macro scrip
- 7-digit (0.8”) display w/ 3 line x 6 character graphic array
- 24-button keypad w/ audible confirmation of press
- Easy to navigate configuration menus
- Extensive built-in diagnostic screens
- Battery backed time/date/year
- Units: pounds, kilograms, once, gram, lb/oz, custom
- Scale input digital filtering
- (2) RS-232 serial port
- (1) Ethernet: TCP/IP, Ethernet IP, Modbus/TCP
- (1) USB host: printer, flash memory, keyboard
- (3) logic level inputs
- (3) set point outputs, open collector

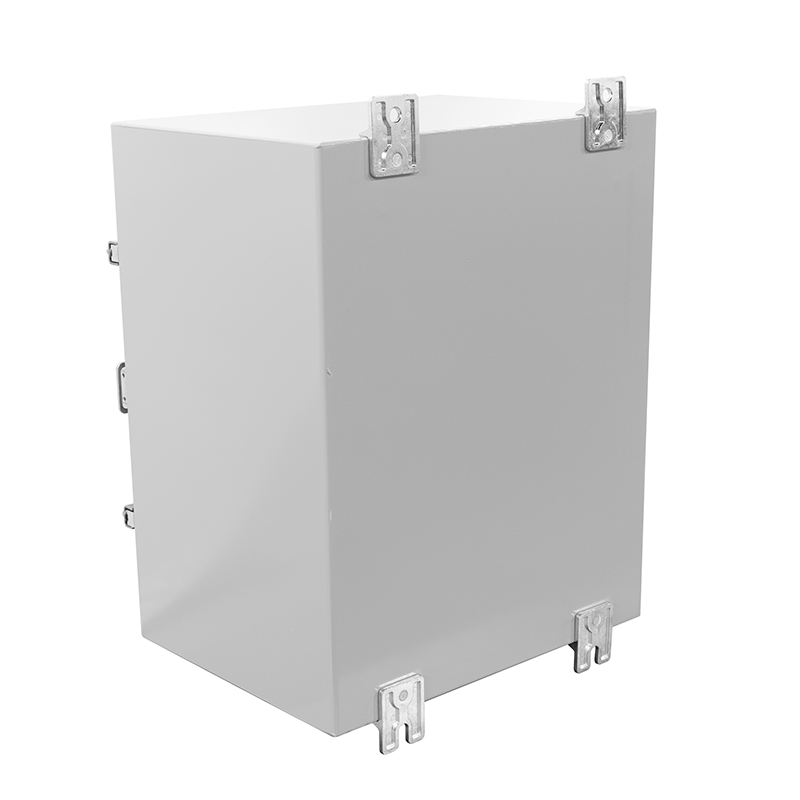

- IP Rating: IP66 Carbon Steel Painted Enclosure
- VKP80II Thermal Printer
- 24 VDC Power Supply
- Enclosure Heater
