Details

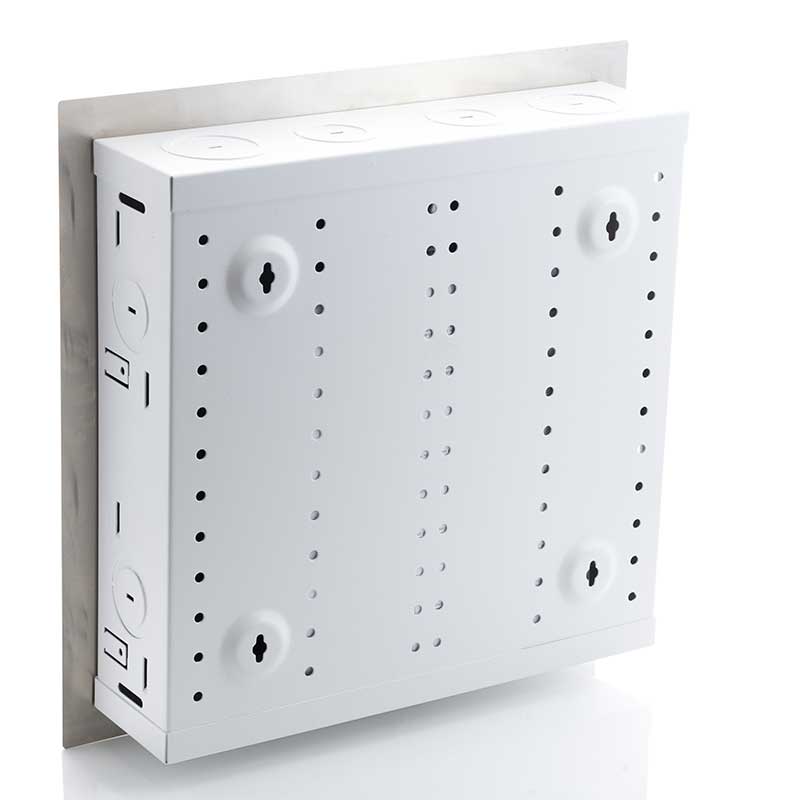

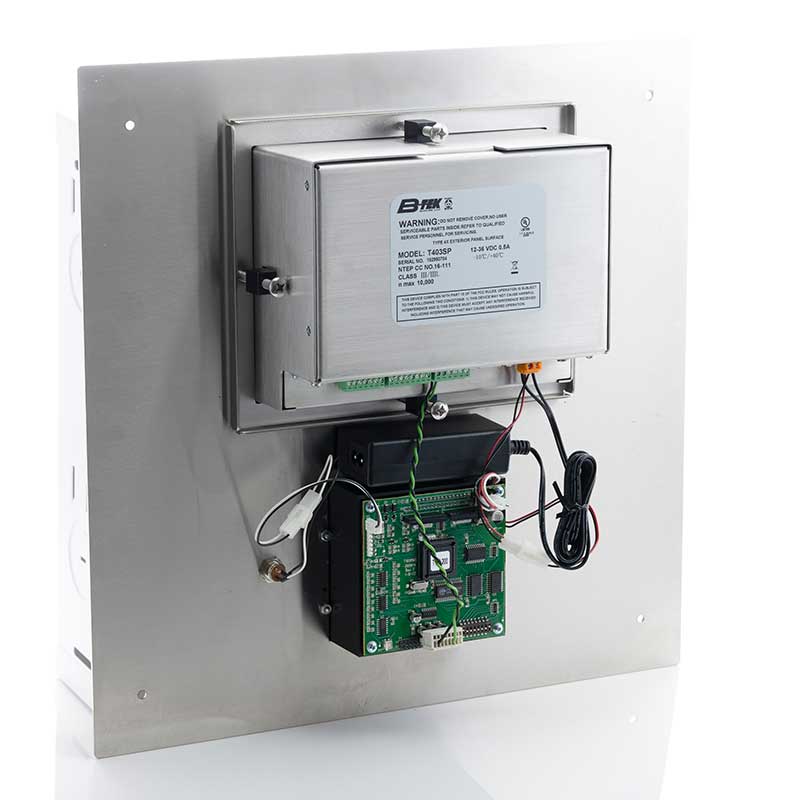

The T403S Wall Mounted indicator is the perfect solution for indoor office installations requiring an indicator and printer.  By mounting the equipment into the wall, space is saved by removing the need for a desk or shelf in the area.  When connected to a floor scale installed into a pit frame, weighments can be performed without having tripping hazards.  This is ideal for medical facilities or dialysis clinics.

Specifications

  • NTEP COC: 16-111
  • UL Listed E487985
  • T403S stainless (IP20) Wall Mount
  • 7-digit LCD high contrast green on black display, 0.8” digit
  • 24-button chemical resistant polycarbonate keypad
  • Easy to navigate configuration menus
  • Extensive built-in diagnostic screens
  • Battery backed time/date/year
  • Units: pounds, kilograms, once, gram, lb/oz, custom
  • Scale input digital filtering
  • (2) RS-232 serial port
  • (1) Ethernet: TCP/IP, Ethernet IP, Modbus/TCP
  • (1) USB host: printer, flash memory
  • (3) logic level inputs
  • (3) set point outputs, open collector
  • Connect up (6) 350 ohm load cells / (12) 700 ohm
  • Built in DOT Matrix PL180 Printer
Loading Resources ...

Options & Accessories

Loading Options & Accessories ...

Frequently Asked Questions

1 - Year Warranty
