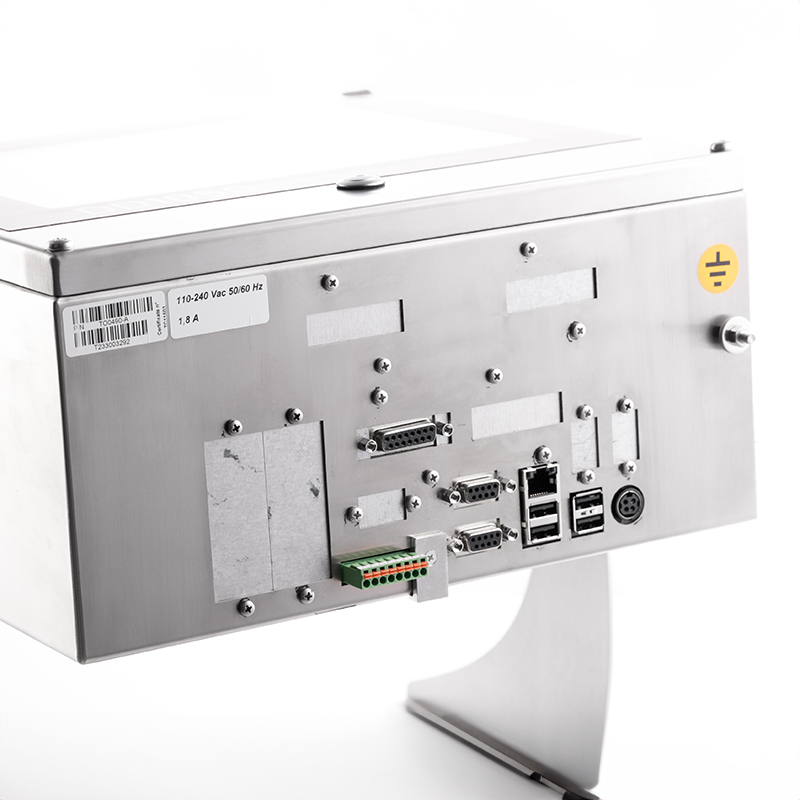

SKYNET DD1050 Indicator
The SKYNET DD1050 is a fully integrated scale information and control terminal, specifically designed for ease of operator interaction.
DD1050ic version: desk mount with ingress rating of IP20 / NEMA 1
DD1050i version: wall mount with ingress rating of IP69k / NEMA 4x
- Freely Programmable - Utilize custom-designed applications to fit your specific needs
- Truck In/Out Software - Standard configurable weighing software included
- Axle Weighing - Standard axle weighing software with traffic light control for up to three axles with e-mail report
- User-Friendly Operation - Control with a mouse, keyboard or touch screen with the option to plug in an additional monitor
- Connectivity - Ready to connect to your network and all your peripherals
- Data Access - Data is recorded in our SQL database and available via email reports, USB download, Data Studio and ScaleSoft Unattended software
- Ultra-Fast Speed - Instant responsiveness, lightning-fast system reboot and digital calibration speed
- Remote Transactions - Fully functional stations with a shared database in the office as well as the scale house
- B-TEK Nexia - Provide full insight into scale performance through detailed health monitoring
Details
The SKYNET DD1050 indicator is a fully integrated scale terminal, specifically designed for easy operator interaction. It features a 10.4” high-resolution, color touchscreen and offers the flexibility to connect to various types of external devices that can be managed remotely or directly from the terminal.
DD1050ic version: desk mount with ingress rating of IP20 / NEMA 1
DD1050i version: wall mount with ingress rating of IP69k / NEMA 4x
Specifications
- N-TEP COC: 13-055A1
- Canada COC: 5981r1
- Power Supply UL Approved E209833 & E183223
- 10.4" Color, high-contracts touchscreen display with protective cover
- Stainless steel housing
- Mount: Desk mount with DD1050ic and wall mount with DD1050i
- User programmable displays, icons, graphics and layout
- Remote operation over ethernet using Windows computer
- Environmental: DD1050ic version IP20 / 1050i version IP69K
- High speed 1 GHz dual core processer
- 1 GByte internal memory
- (1) Ethernet 10/100 (wired)
- (1) (1) RS-232 & RS-422 port
- (1) RS232 ports
- (2) input / (2) 24VDC output opto-isolated relays
- (2) Expansion card slots
- (1) Scale input (analog or digital) - up to 100 readings / sec.
- Power up to (12) 350 ohm analog cells (up to 24 quad scale version)
- Power up to (16) digital cells standard, (24) with power regulator upgrade - multi scale version
- (4) USB host ports - RS232 & RS422 w/ FTDI chip set
- Local / Remote indicator with database sharing via TCP/IP ethernet
- Easily customizable ticket formats
- Built in traffic light control, and photo eye inputs for truck positioning
- Advanced internal scale diagnostics / statistics
- Modbus TCP Server built into software
- Optional: Up to three additional scale input (analog or digital)
- Optional: (8) input / (12) output card
- Optional: HDMI Card for External Repeater
- Optional: Pulse count input up to 2 KHz
- Optional: Analog output 0-10 V / 4-20 / Analog input 0-10 V / 4-20 mA
