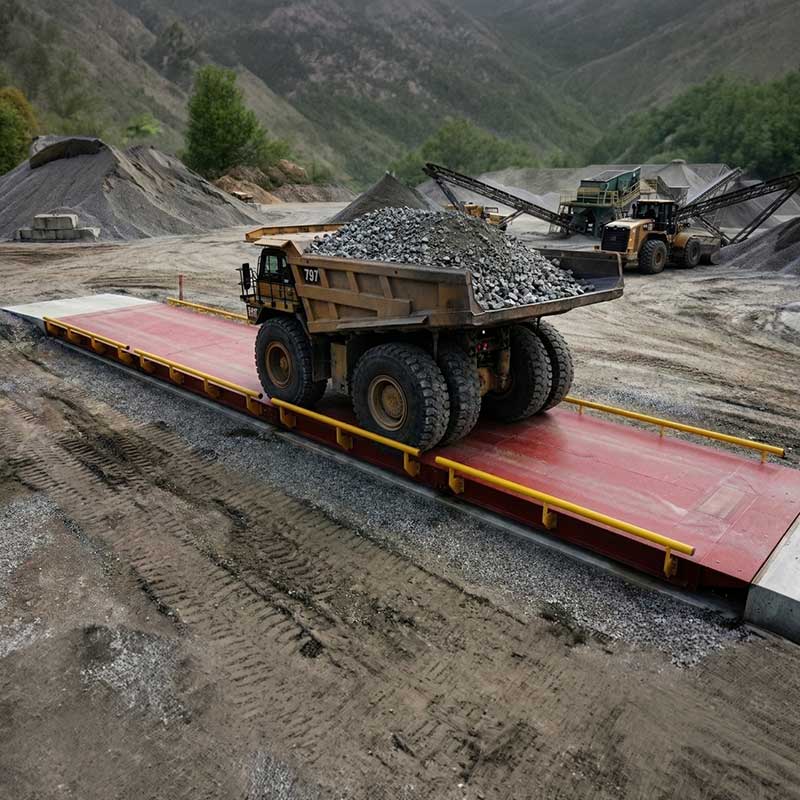

Centurion Truck Scale
https://www.b-tek.com/products/vehicle-scales/truck-scales/truck-scale-weigh-bridges/centurion-truck-scale?sku=CT-7211-AT-CD
Share this product beyond Facebook and Twitter!
Product Code:
CT-7211-DT
The Centurion from B-TEK Scales is the only vehicle weighing system of its kind available, offering the latest digital technology in a unique, modular design. It's the most robust scale on the market, utilizing tread plates that are 20% thicker than all scales in its class. Its durable construction is designed for long life in tough environments. Providing 10 lb. graduations, the Centurion is the most accurate truck scale available.
Details
B-TEK’s Centurion is designed with enhancements specifically tailored to make service and calibration easy and efficient:
- 14" end wall clearance - prevent dirt, debris and ice from building up and interfering with the scale’s operation
- Hermetically sealed stainless steel (IP68/69K) load cells – Ultimate protection from harsh weather environments
- Large top access covers - each load cell is accessible for easy installation, calibration and service
- Dual calibration storage - download the calibration from the indicator to the load cells or upload from the load cells to the indicator, providing speedy plug-and-play replacement
- Nexia™ remote monitoring - provide full insight into scale performance through detailed health monitoring and event notifications
Specifications
- Weighbridge Deck: 3/8” tread plate decking - welded to Quad Beam weighbridge
- Load Cell: 77K CPD-M digital compression column load cell, RS-485 digital output, stainless hermetically sealed (IP68/69K) construction
- Load Cell Cable: Stainless steel sheathed cable with clear polymer coating and water-tight connectors
- Junction Box: NEMA 4X stainless steel enclosure(s) and 8-cell terminal board with GDT surge protection
- Surge Protection: CPD-M digital load cells along with DD Series indicator protect against lightning.
- Built-in surge protection enhanced by Tripp-Lite Isobar Ultra 4-Outlet AC line transient protection device and two in-line serial port surge protection devices
- Warranty: 5 or 10 Year “End-Wall to End-Wall” parts, labor and travel warranty covering weighbridge, load cells, junction box and indicator from failure or damage due to lightning
- Indicator: Supplied with a DD700 desktop digital indicator
- Printer: Supplied with an Epson TM-U295 ticket printer
Input
- Digital
- Analog
Width
- 11 ft
- 12 ft
Deck Type
- Steel
- Concrete
