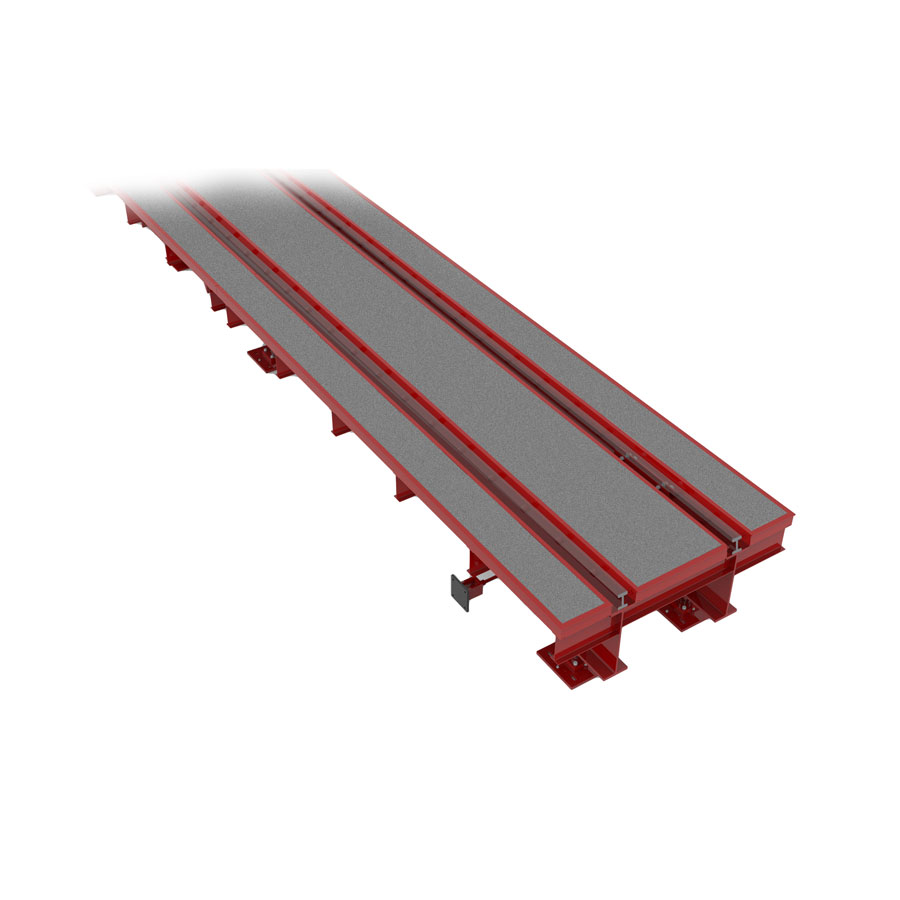

Rail/Truck Combo Scale
The B-TEK Rail/Truck Combo Scale offers the ideal solution for industries that require accurate weighing of both railcars and trucks in limited space environments.
- Modular Design - Accommodates a wide range of railcars for versatile weighing
- Certified Capacity - Gross capacity up to 400,000 lbs with NTEP-rated sectional capacity of 180,000 lbs
- Durable Construction - Epoxy primer and polyurethane topcoat provide long-lasting protection
- Digital Load Cells - Enhance accuracy and reduce downtime for repairs or calibration
Details
The B-TEK Rail/Truck Combo Scale offers the ideal solution for industries that require accurate weighing of both railcars and trucks in limited space environments. Designed for continuous operation, this scale is perfect for bulk cement, grain, scrap metal, and chemical applications. It features a modular design that can be installed above ground or in a pit, supporting various vehicle sizes and configurations. Equipped with TruDigital technology, the scale ensures reliable, precise performance while minimizing downtime.
Specifications
- NTEP COC: 02-134A3
- Capacity: 200,000 x 20 lb (vehicle) & 400,000 x 50 lb (rail car)
- Rail Sectional Capacity: 360,000 lb
- Vehicle Scale CLC: 100,000 lb
- Designed for 115# rail (other sizes possible)

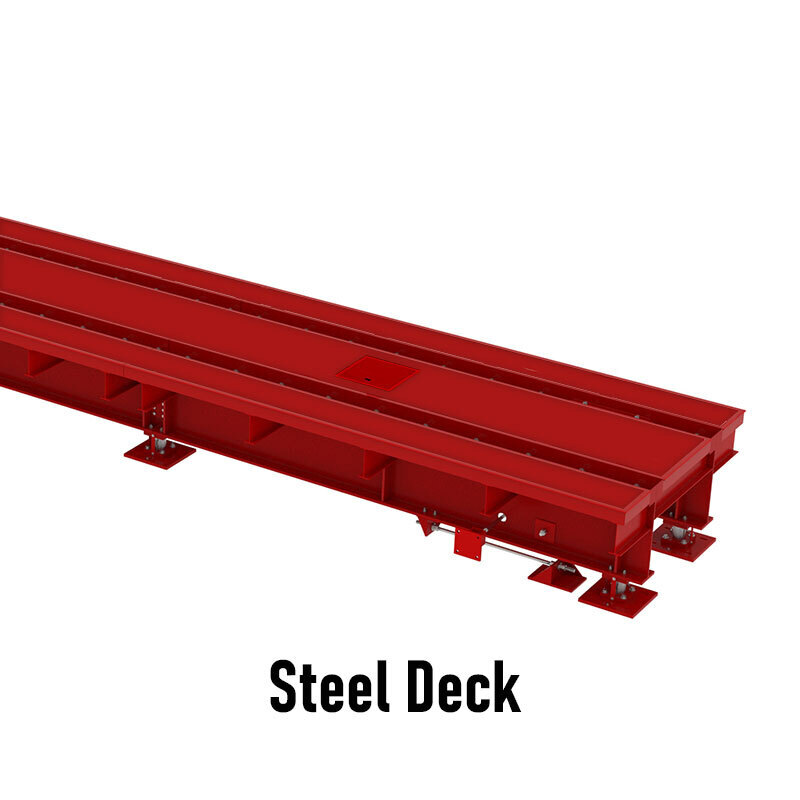

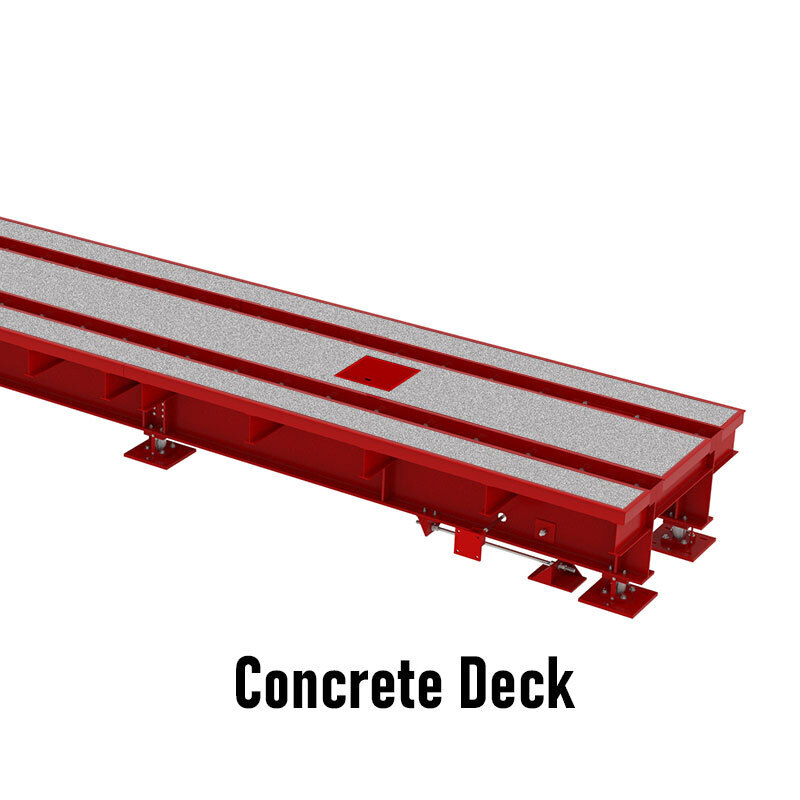

- Concrete deck standard (steel deck available)
- Bolted rail clips
- Check-rods for limiting lateral and longitudinal movement
- Anti-creep rail brackets
- All foundation anchor bolts
- 200K capacity stainless steel load cell – IP68 housing
- NEMA 4/6P polycarbonate load cell junction box
- Grounding and surge suppression kit
- Commercial blast steel cleaning SSPC-SP6
- Two-part epoxy primer followed by two-part polyurethane top coat
- Meets or exceeds Cooper E80 loading, AAR and AREMA standards
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
Weighbridge materials / workmanship (excluding concrete) that lead to failure for a period of 60 months from the date of shipment.
Compression canister analog load cells and junction boxes for a period of 24 months from the date of shipment.
The warranty provides parts, labor and travel expenses within (90) days after shipment. After the (90) day period, labor and travel expenses are not covered. Labor and travel expenses are not covered in the first (90) days if component failure is caused by lightning or surge voltage event.
