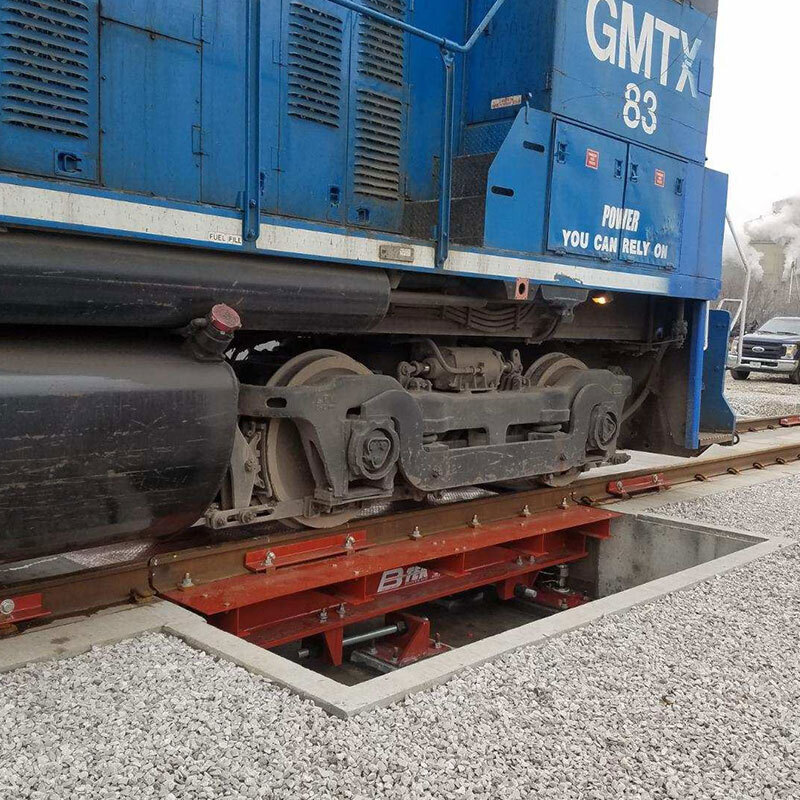

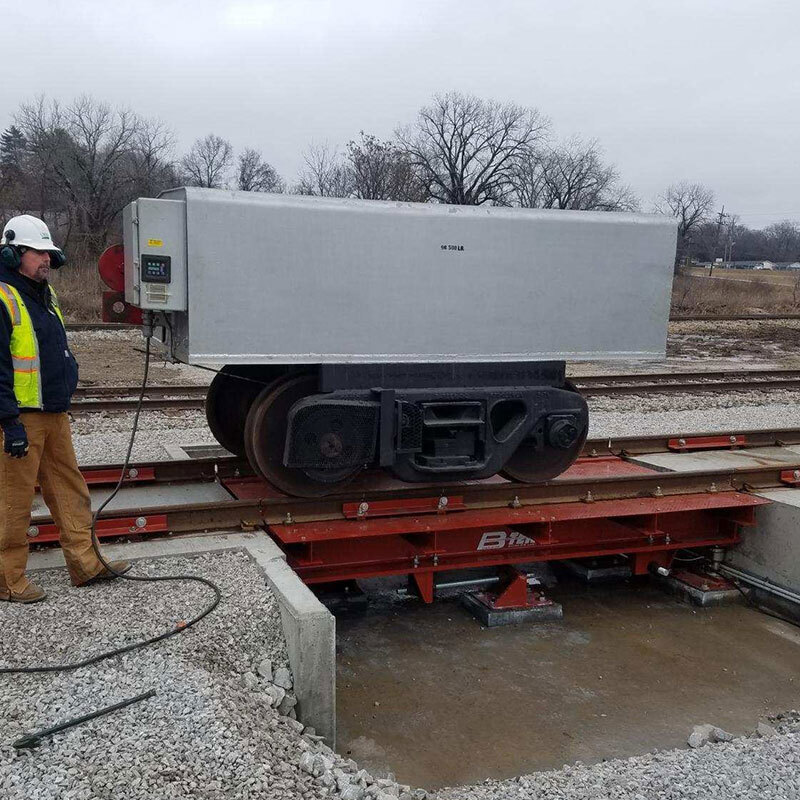

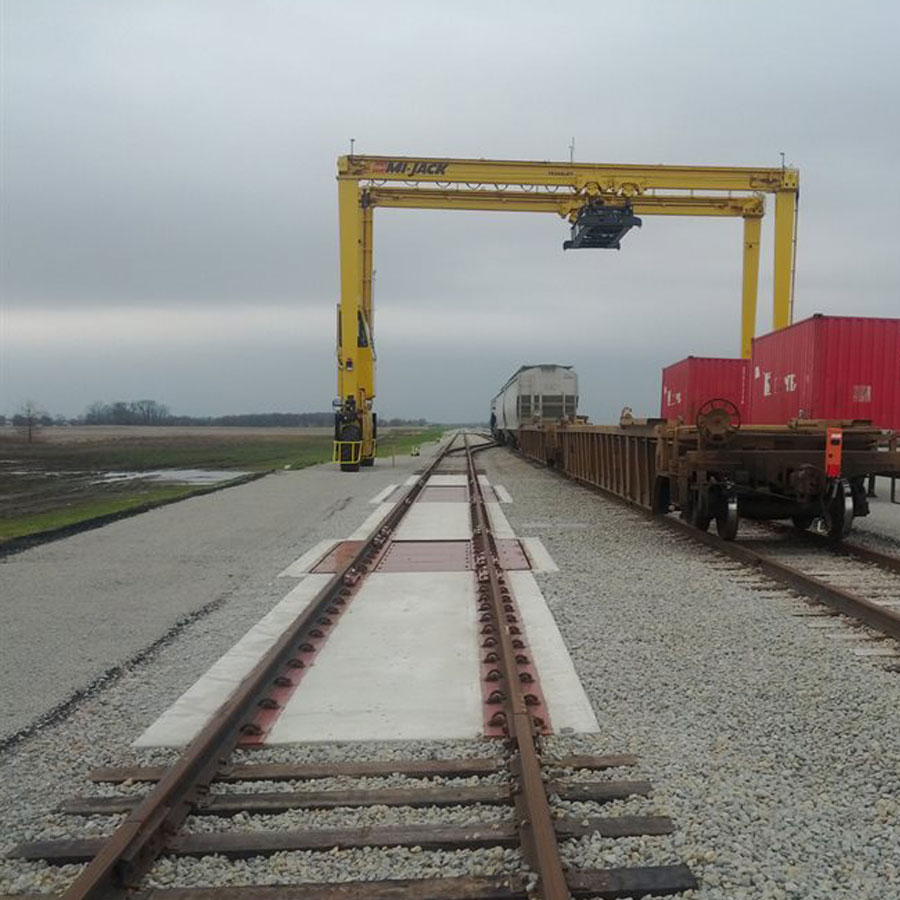

Low-Profile Modular Rail Scale
The B-TEK Low-Profile Modular Rail Scale is designed for continuous, high-accuracy weighing in demanding industrial environments. This scale supports a wide range of rail car lengths, offering both double-draft and full-draft weighing options. Its modular design and NTEP-rated capacity of 170,000 lb make it suitable for bulk cement, aggregate, grain, scrap metal and chemical applications.
- Sectional Capacity - NTEP-rated at 170,000 lb for precision weighing
- Modular Design - Supports a variety of rail car sizes and lengths
- TruDigital Technology - Ensures real-time data monitoring and long-term accuracy
- Advanced Design - Eliminates flexure plates and reduces maintenance requirements
- Complete Package - Includes bolted rail clips, anti-creep brackets and anchor bolts
Details
The B-TEK Low-Profile Modular Rail Scale is designed for continuous, high-accuracy weighing in demanding industrial environments. This scale supports a wide range of rail car lengths, offering both double-draft and full-draft weighing options. Its modular design and NTEP-rated capacity of 170,000 lb make it suitable for bulk cement, aggregate, grain, scrap metal and chemical applications. The scale’s fully-digital components, including TruDigital technology, provide real-time monitoring and minimize downtime. Built for durability, the scale includes bolted rail clips, anti-creep devices and a 360° positive self-checking system, eliminating the need for flexure plates and check rods. The scale also meets AAR and AREMA standards, ensuring long-term performance and precision. Available in four configurations, the scale can be tailored to suit various rail car lengths, offering flexibility and reliability in one complete package.
Specifications
- Sectional Capacity is NTEP rated at 170,000 lb
- Modular Design of scale allows weighing of a wide range of rail cars
- Gross capacity is certified at 400,000 lb in 50 lb graduations
- Foundation anchor bolts and grout plates included
- Anti-creep devices included for rail on scale and approaches
- 360° positive self-checking eliminates the need for flexure plates or adjustable check rods
- NTEP-approved, environmentally-protected load cells
- NEMA 4X junction boxes are standard
- Weighbridge design meets AAR (Association of American Railroads) and AREMA (American Railway Engineering and Maintenance-of-Way Association) standards
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
• 5-Year weighbridge & CPD-M load cell warranty covering defects in materials and workmanship
• 5-Year surge/lightning warranty covering CPD-M load cells and junction box(es)
( Parts only - does not include travel or labor expenses )
