Details

The AquaShield Washdown Bench Scale is an exceptional water-resistant solution designed for food processing, chemical, and industrial environments that require high-pressure cleaning. Engineered with robust 304 SAE stainless steel and an IP65-rated load cell, this scale ensures longevity and reliability in harsh conditions. The AquaShield features an innovative Aqueduct Drainage System (ADS) and FDA-compliant feet, making it an ideal choice for rigorous, daily operational needs. Available in three sizes and optional indicators (T401S or T403S), the AquaShield offers versatility and customization to fit any application.

IP RATING: IP65

*Canadian approval for scale only (not indicator)

Specifications

  • Canadian Approval: AM-6145 REV.1
  • Indicator: T401S or T403S Indicator (includes column)
  • Applications: Comes preconfigured with standard general weighing, a free preconfigured app upgrade for counting or checkweighing can be chosen

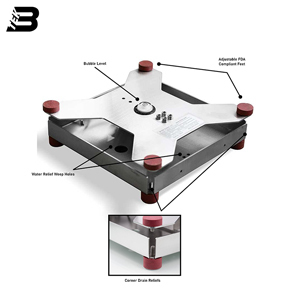

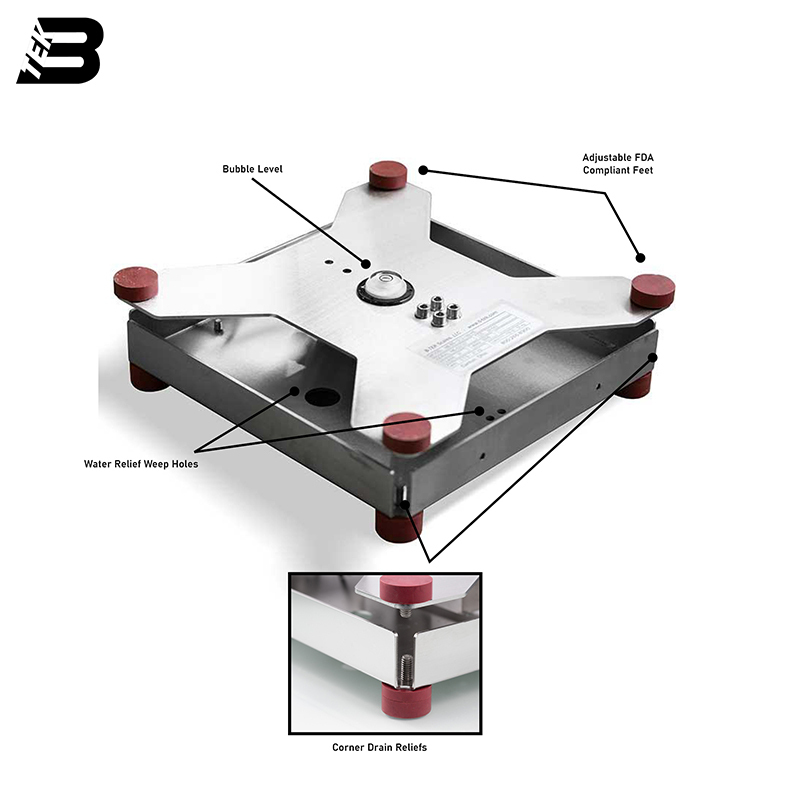

  • Design: All new design for ease of cleaning and prevent accumulation of liquid / materials
  • Type: Single point bench scale
  • Scale Capacity: 5, 20, 50, 100 and 200 lb
  • Scale Height: 4”
  • Available Sizes: 10” x 10”, 12” x 12” and 18” x 18”

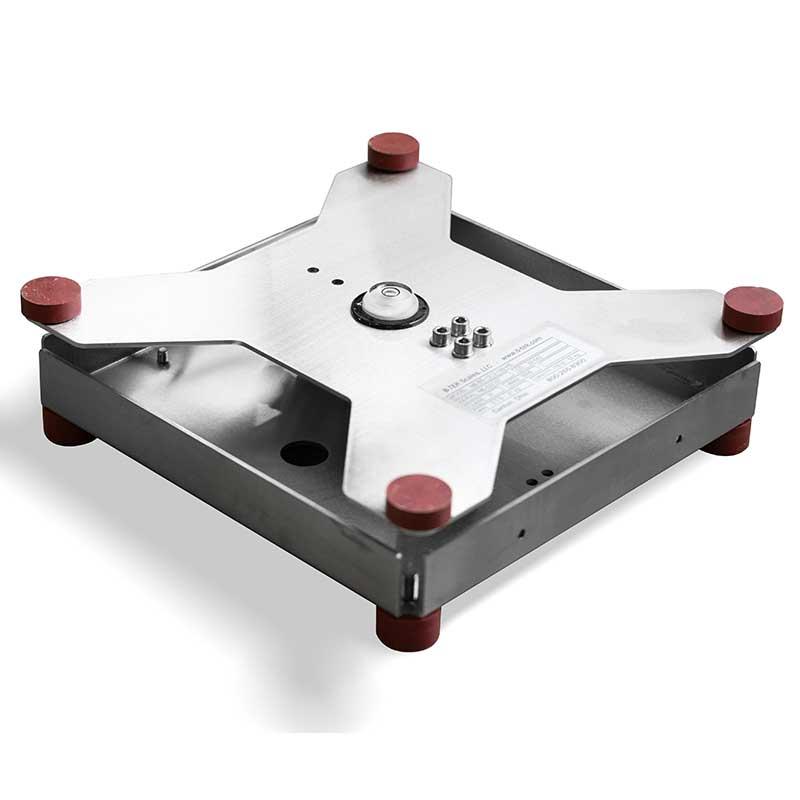

  • Weighbridge: 304 stainless steel heavy duty formed base frame and spider
  • Column: 19” tall 304 stainless open frame design / Optional with AquaShield base
  • Platter: Heavy gauge 304 stainless steel
  • Load Cell: AquaShield: Standard Aluminum IP65 single point, 10’ cable
  • Feet: FDA compliant
  • NTEP approved
  • IP RATING: IP65

Function

  • Checkweighing

IP Rating

  • IP65
Loading Resources ...

Options & Accessories

Loading Options & Accessories ...

Frequently Asked Questions

2-Year on weighbridge steel structure
3-Year on the standard load cell

Industries
