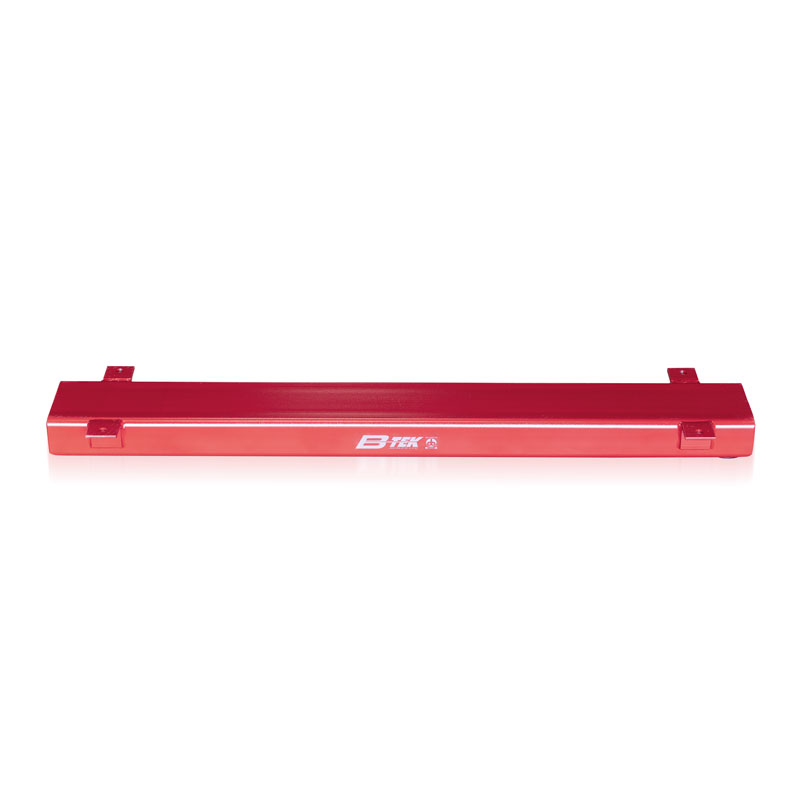

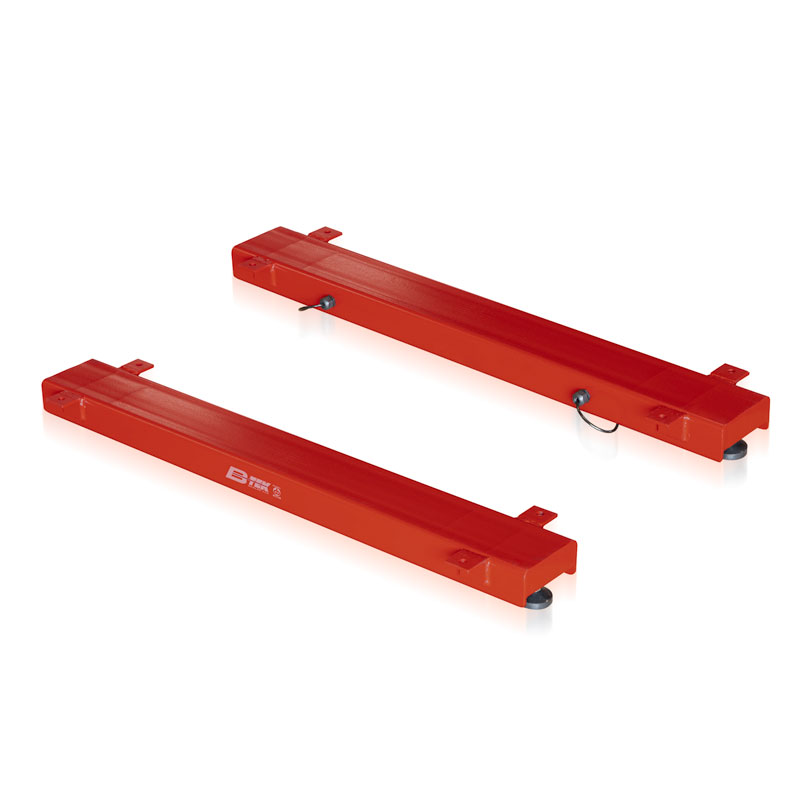

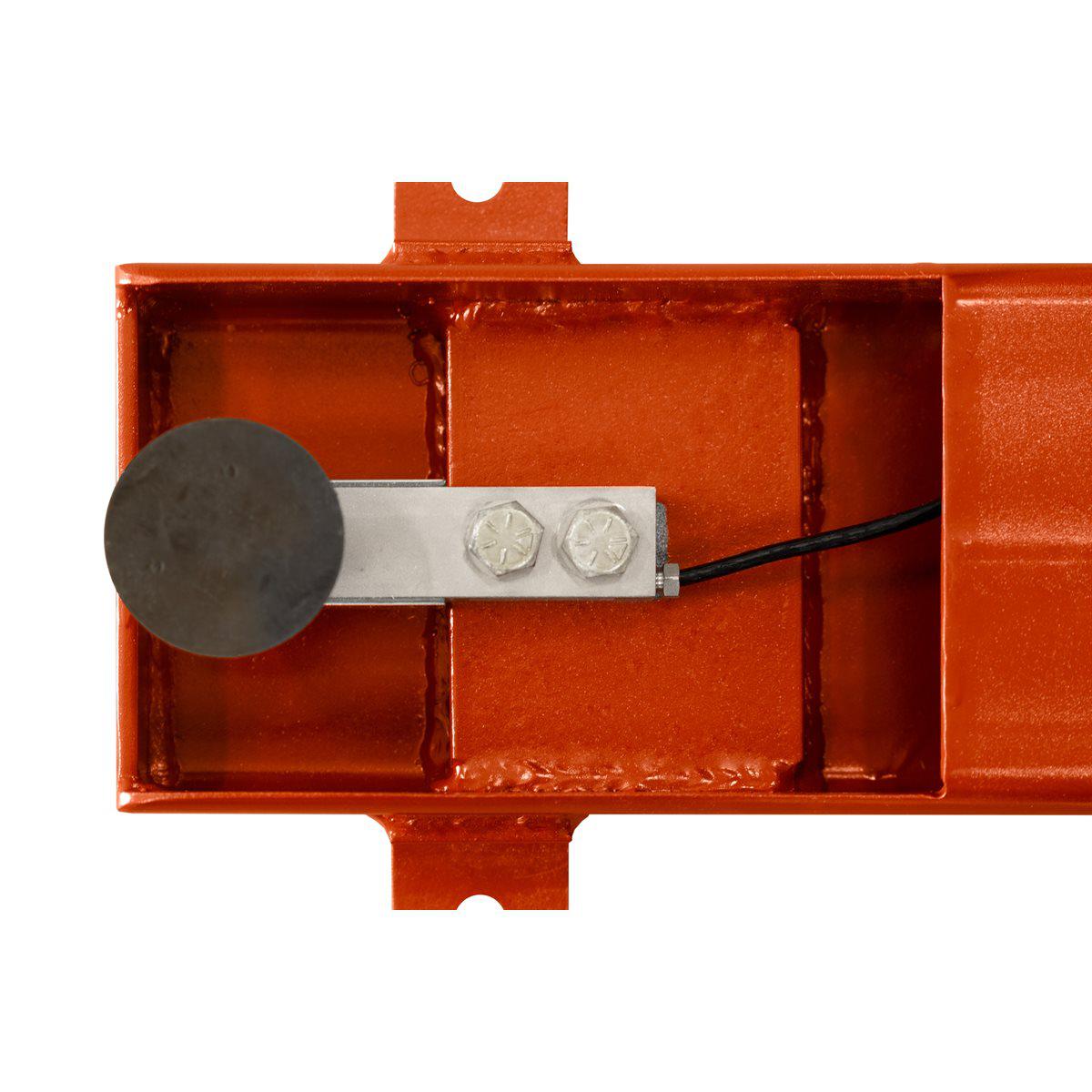

Weigh Rails are the ultimate solution for versatile, accurate weighing in both agricultural and industrial settings. Specifically designed to handle tough farm and animal weighing tasks, these robust weigh rails can also be adapted for industrial uses where traditional platform scales fall short. Engineered with rugged all-steel construction and equipped with sealed components and stainless steel load feet, Weigh Rails are built to withstand harsh outdoor environments year-round. Whether you need a permanent installation or a portable setup for temporary or seasonal use, the lag-down foot retainer plates provide unmatched stability and flexibility. Includes (2) weigh rails.

Rail Length: 22 in long weigh rails, 2,500 lb capacity x 0.5 lb

Rail Length: 33 in long weigh rails, 5,500 lb capacity x 1 lb

Rail Length: 48 in long weigh rails, 10,000 lb capacity x 2 lb

Specifications

  • Certificate of Conformance: NON-NTEP
  • Type: Above ground mounting - all weather outdoor construction
  • Rail Capacity: 2,500 to 10,000 lb system gross capacity
  • Rail Length: 22 in long weigh rails, 2,500 lb capacity x 0.5 lb
  • Rail Height: 4-1/4 in

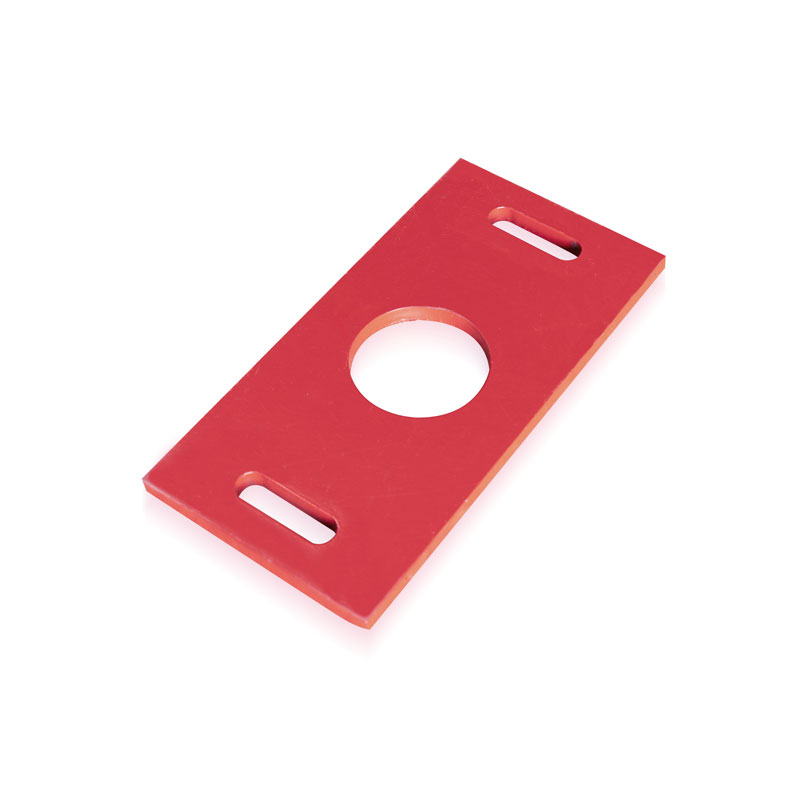

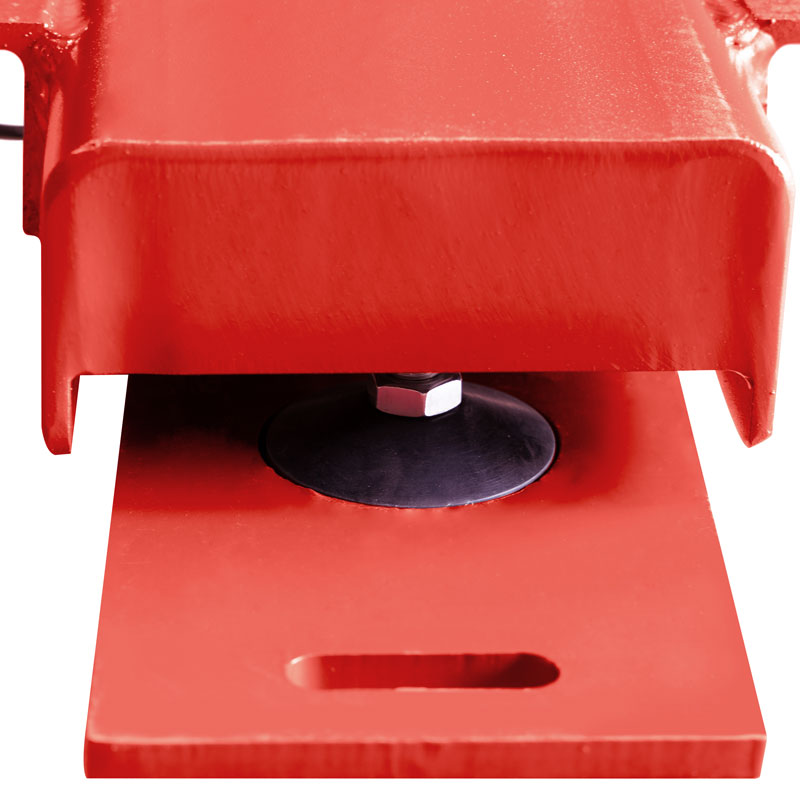

  • Mounting: Lag-down foot retainer plates included with kit
  • Weigh Rail Construction: Heavy wall carbon steel structural tubing
  • Finish: Alkyd Enamel paint
  • Junction Box: Remote mount NEMA 4X stainless steel junction box with signal trim summing board
Loading Resources ...

Frequently Asked Questions

  • 2-Years on weighbridge steel structure
  • 1-Year on load cells, junction box, and summing board
B-TEK Weigh Rails are a versatile weighing solution designed to be installed under existing structures such as conveyors, tanks, or platforms. They provide accurate weight readings while allowing flexibility in industrial applications.
B-TEK Weigh Rails are widely used in agriculture, manufacturing, logistics, and food processing for applications like conveyor weighing, batching, and inventory control.
Yes, B-TEK Weigh Rails can be customized in terms of length, capacity, and configuration to fit unique operational needs.
The weigh rails are designed for easy integration, but depending on your setup, additional mounting hardware may be required.
B-TEK Weigh Rails provide high accuracy and reliability when properly installed and calibrated. Accuracy depends on load cell specifications and environmental factors.
Routine maintenance includes checking for debris, ensuring secure mounting, and verifying calibration periodically.
