Details

The B-TEK Weigh-A-Round Portable Platform Scale is designed for applications where moving the scale is easier than moving the items being weighed. With inboard wheels and lockable rear swivel casters, this scale offers effortless maneuverability, even in tight spaces. Constructed from durable painted carbon steel or 304 stainless steel, the Weigh-A-Round is available in 250, 500, and 1,000 lb capacities. This versatile scale can be paired with various indicators and customized to meet specific application requirements, making it ideal for mobile weighing needs.

Specifications

  • NTEP Certificate of Conformance: 24-037
  • Type: Portable single point weighing platform
  • Scale Capacity: 250, 500 and 1,000 lb
  • Platform Height: 6-9/16” nominal
  • Available Sizes: 24” x 18” & 30” x 24” - custom sizes upon request
  • Weighbridge: Heavy duty structural channel base frame and structural tube spider

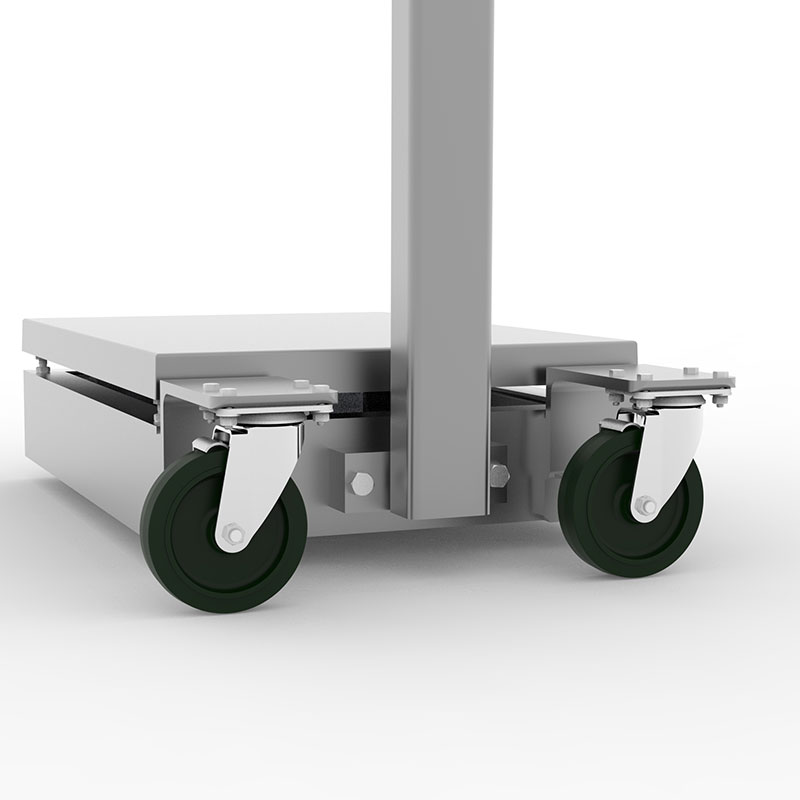

  • Mobility: (2) fixed in-board and (2) rear mounted swivel wheels

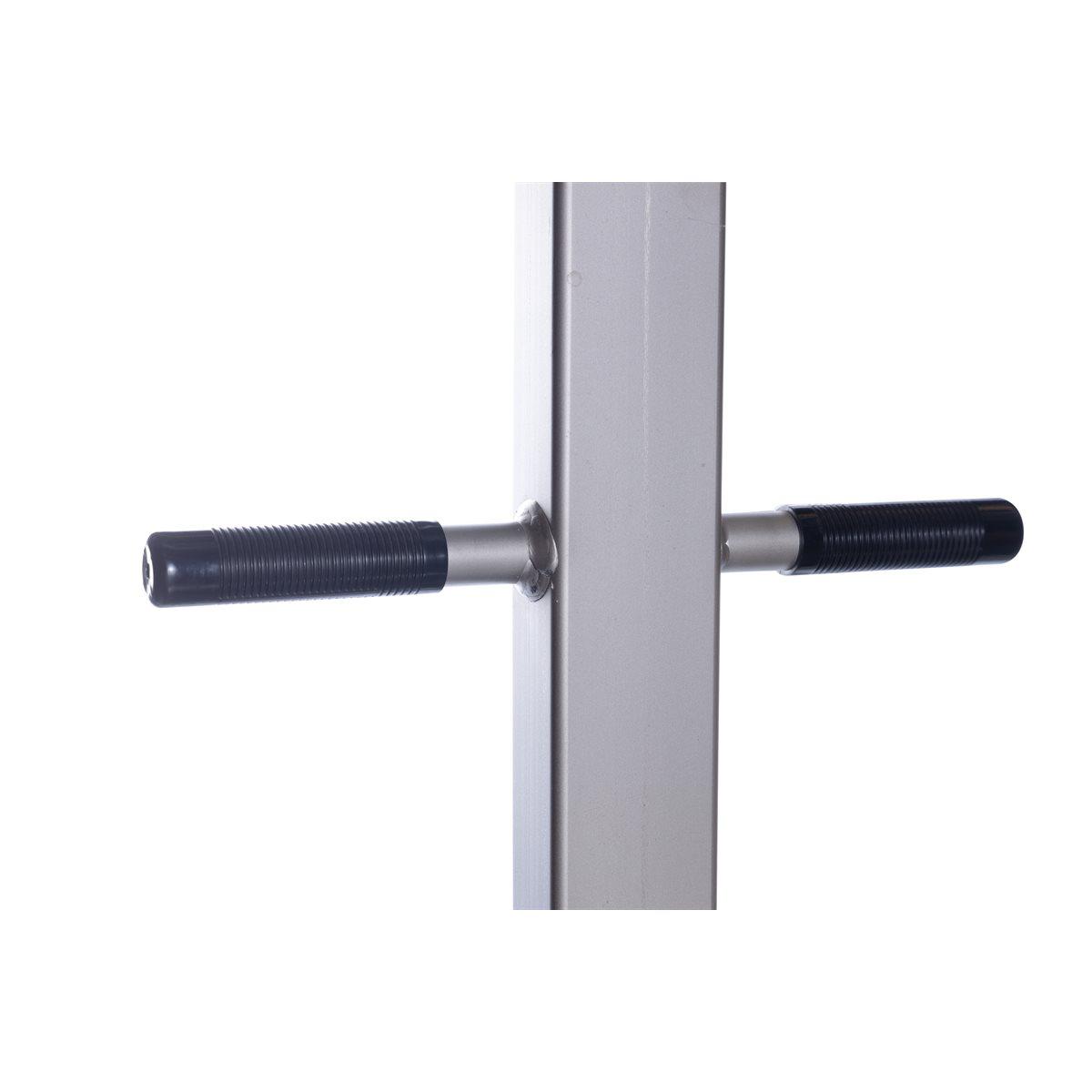

  • Column: 48” tall structural tube column with handle grips and universal top plate for indicator
  • Platter: 304 stainless steel
  • Carbon Finish: Epoxy paint finish on base frame and spider
  • Stainless Finish: All exposed surfaces are media blasted to a clean, consistent appearance
  • Load Cell: Anodized aluminum “brick type” single point load cell, Environmentally sealed (IP67), 350 Ohms, 2.0 mV/V, FM Approved

Material

  • Carbon Steel
  • Stainless Steel
Loading Resources ...

Options & Accessories

Loading Options & Accessories ...

Frequently Asked Questions

2-Years on weighbridge steel structure, 1-Year on the load cell

Industries
