Details

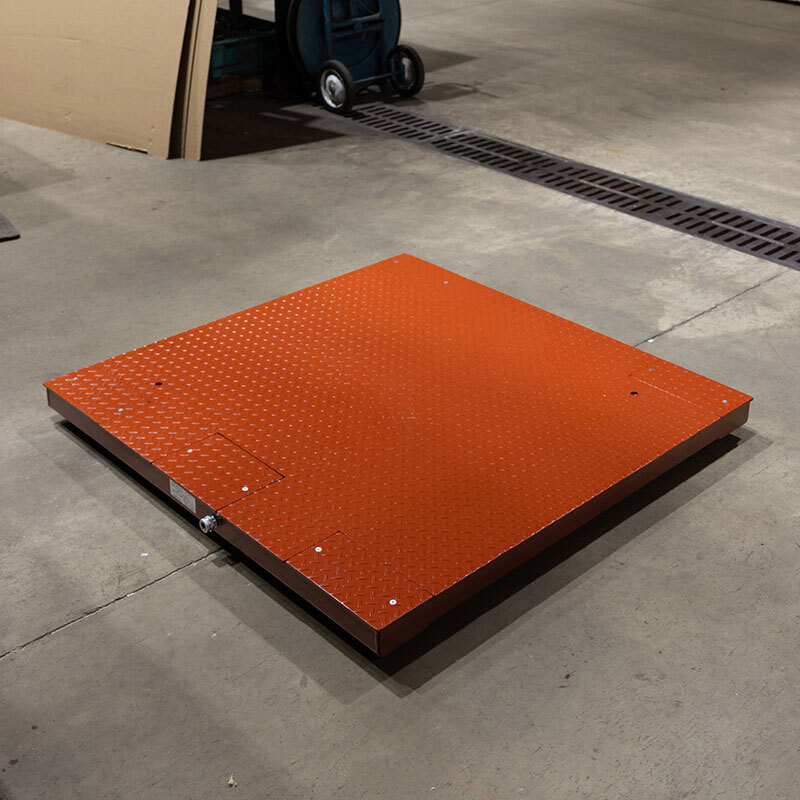

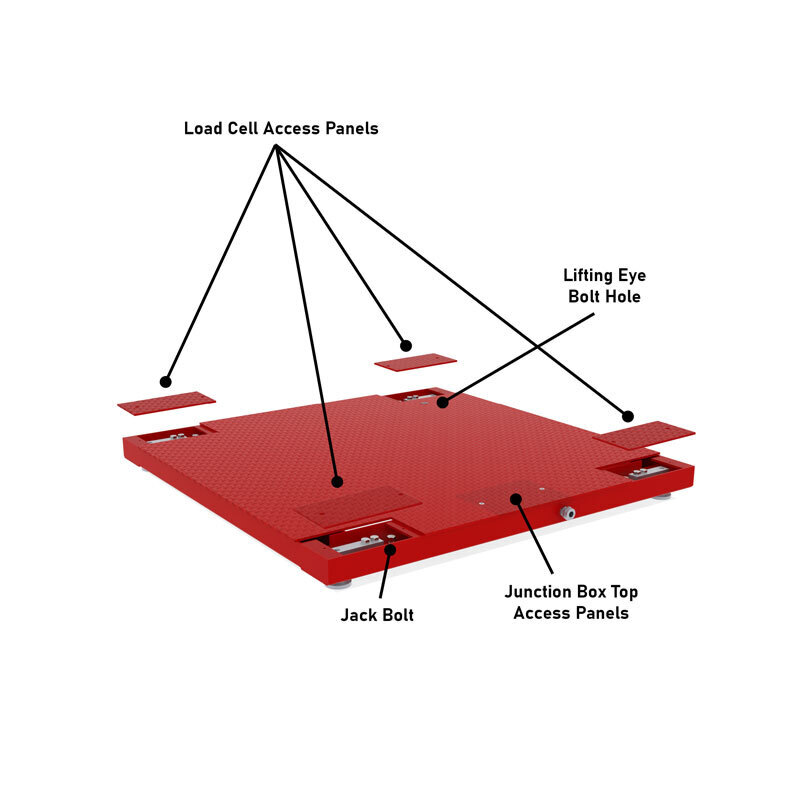

The B-TEK TankPro Floor Scale offers a safe and durable solution for weighing tanks, vessels and machinery that remain permanently in place. With top access load cell plates and integrated jack bolts, serviceability is made easy while ensuring safety and minimizing disruptions during maintenance. The TankPro's robust construction makes it suitable for all applications, providing reliable performance in demanding environments.

Specifications

  • COC: 94-092A5
  • Above ground or pit installation
  • Deck Height: 4 3/8"
  • Deck Thickness: 1/4"
  • Tread Deck - Carbon
  • Smooth Deck - Stainless
  • Formed c-channel substructure
  • Top access junction box
  • Stainless steel ball encapsulated feet - 2.5” diameter base
  • Top access load cells
  • Acrylic Alkyd enamel paint system (Carbon)
  • IP67 Plated alloy steel, 350 Ohms, 3.0 mV/V load cell
Loading Resources ...

Options & Accessories

Loading Options & Accessories ...

Frequently Asked Questions

  • Manufacturing – Weighing raw materials, production components, and finished products.
  • Chemical Processing – Measuring liquid and powdered chemicals in tanks and totes.
  • Food and Beverage – Ensuring precise ingredient measurements and batch processing.
  • Pharmaceuticals – Accurately weighing active ingredients in production.
  • Agriculture – Weighing fertilizers, feed, and liquid storage tanks.
  • Waste Management & Recycling – Tracking material weights for disposal or repurposing.
Yes, the TankPro Floor Scale is designed to accurately weigh liquid-filled tanks, accounting for dynamic load distribution and ensuring precise weight readings.
The TankPro Floor Scale stands out due to its removable corner plates and easily accessible load cells, allowing for effortless maintenance, calibration, and replacement without requiring extensive disassembly.
Yes, the TankPro Floor Scale is NTEP-certified for legal-for-trade applications.

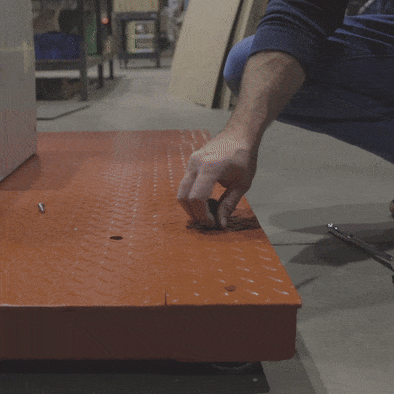

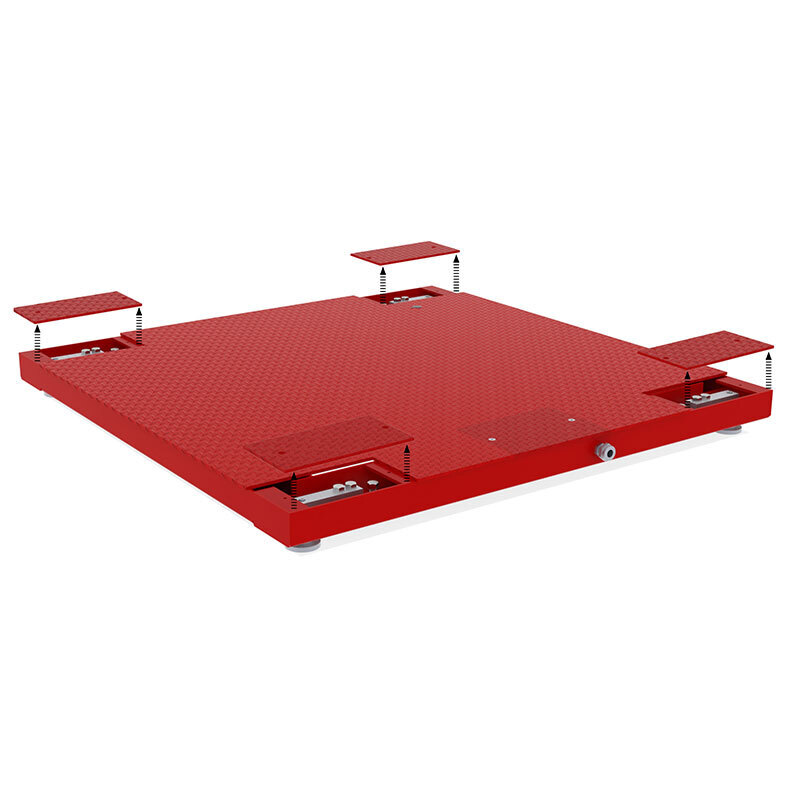

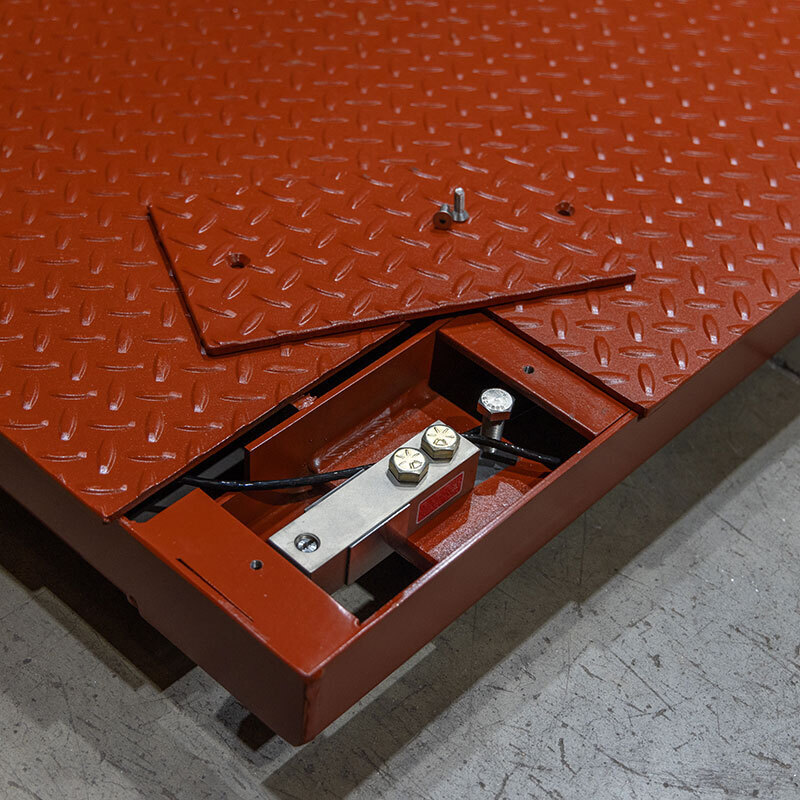

The TankPro Floor Scale features removable corner plates that provide easy access to the load cells. These plates are securely fastened but can be removed quickly using standard tools, allowing for:

  • Fast load cell replacement without needing to lift the entire scale.
  • Easy access for calibration and maintenance.
  • Reduced downtime during servicing, keeping operations running smoothly.
Installation is straightforward and can be done on a flat, solid surface or within a pit-mounted setup for flush operation.

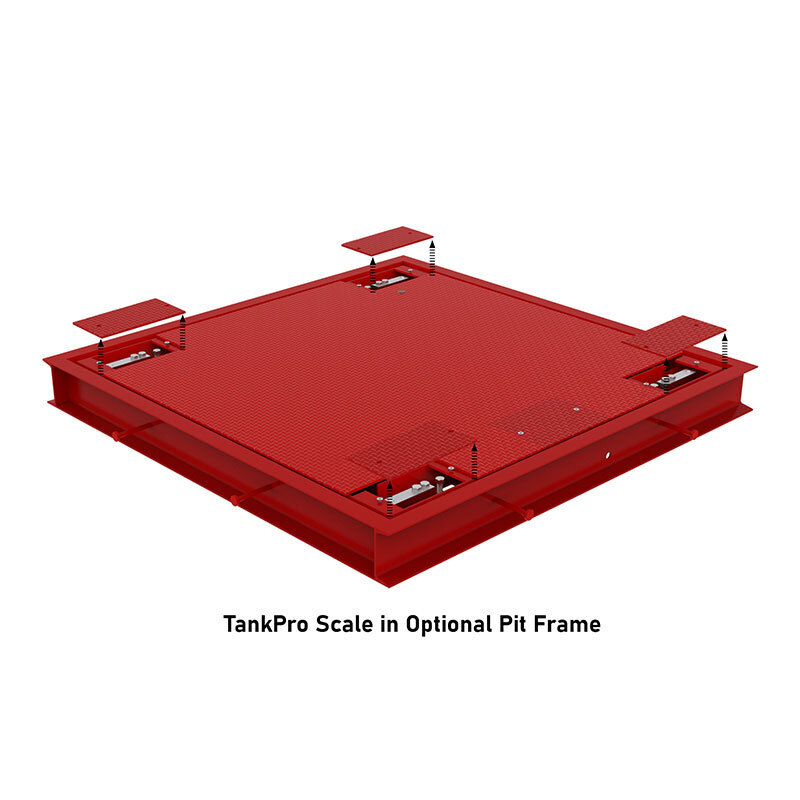

Yes, the scale can be installed in a pit or above ground, depending on operational requirements. A pit-mounted setup allows for seamless loading and unloading.

Compatible weight indicators include:

  • DD Series Indicators – Offer data logging, remote monitoring, and advanced functionality.
  • T104P Indicator – A cost-effective option for basic weighing needs.
  • Third-Party Indicators – Compatible with various industrial software solutions.

Calibration should be performed based on:

  • Industry regulations (legal-for-trade applications require frequent checks).
  • Usage frequency (heavy-use applications may need monthly calibration).
  • Environmental factors (dust, vibration, or moisture can affect accuracy).
