High Resolution Drum Scale Package
Featured Product
https://www.b-tek.com/products/platform-scales/all-floor-scales/floor-scales/high-resolution-drum-scale-package
Share this product beyond Facebook and Twitter!
Product Code:
913-1512

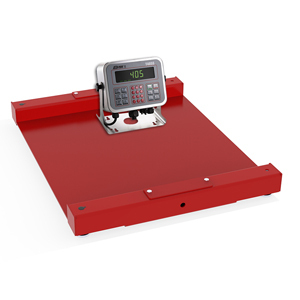

The High Resolution Drum Scale Package delivers precision and convenience for industrial weighing needs. Fully configured and ready to use, it features a low-profile 1.5” deck height, perfect for pallet jacks, dollies, and wheeled carts. Equipped with precision load cells and the T405S indicator, it arrives factory-calibrated for immediate deployment.
- 1.5” Deck Height - Perfect for use with pallet jacks, dollies, and wheeled carts
- Flexible Configuration - Easily adaptable for multiple applications and environments
- Durable Steel Construction - Engineered with thick steel for long-lasting use
- Customizable Options - Ramp, column, backstop, portability frame & portability kit
- Non-NTEP Verifiable Nmax of 20,000 to 25,000 divisions
Details
The High Resolution Drum Scale Package delivers precision and convenience for industrial weighing needs. Fully configured and ready to use, it features a low-profile 1.5” deck height, perfect for pallet jacks, dollies, and wheeled carts. Equipped with precision load cells and the T405S indicator, it arrives factory-calibrated for immediate deployment. Available in painted mild steel or 304 stainless steel, this drum scale can be customized with a detachable ramp, indicator column, or a portability kit/frame, making it highly adaptable for various environments and applications. Its robust construction ensures longevity and reliable performance.
Specifications
- Certificate of Conformance: 94-092A4
- Type: Low profile above ground
- NTEP Nmax of 5,000 divisions
- Non-NTEP Verifiable Nmax of 20,000 to 25,000 divisions
- Scale Height: 1-1/2” nominal deck height
- Weighbridge: 1/4” deck with side rail design
- Deck: Side access FRP junction box, leveling foot adjustment holes in side rails
- Load Cells: High precision rocker pin
- Leveling foot: Adjustable rocker pin style, zinc-plated steel with rubber base
- Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
