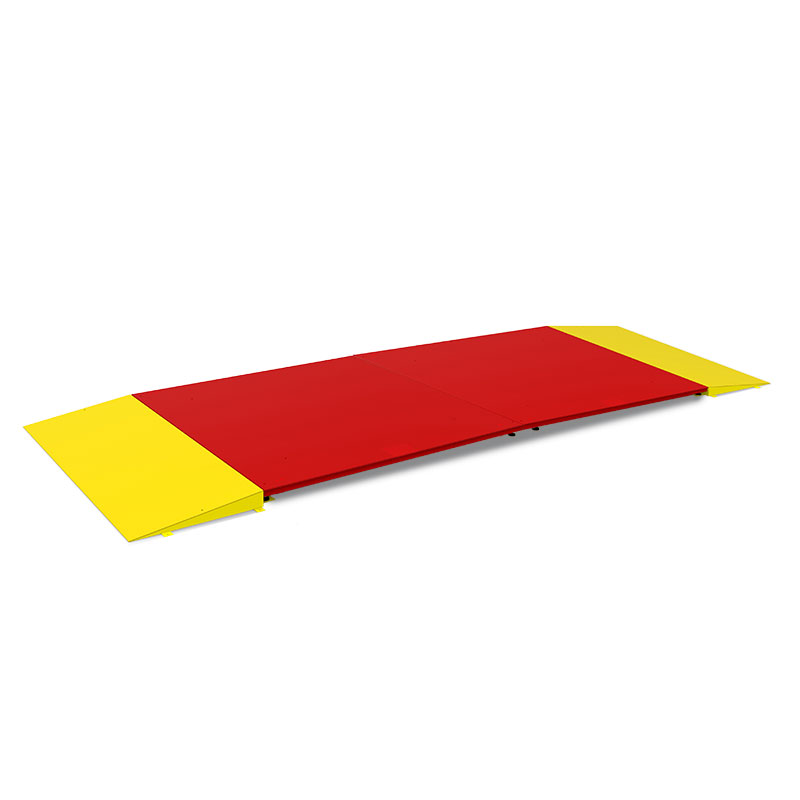

Dual Ramp Cargo Scale
B-TEK's Dual Ramp Cargo Scales are expertly designed to meet the demanding needs of weighing goods from ships, trucks, and aircraft. Engineered for seamless integration with lift trucks and pallet jacks, these scales ensure a smooth transition from floor to scale.
- Low Profile Design - 5.5” Height ensures easy access for lift trucks and pallet jacks, minimizing the risk of accidents and speeding up the weighing process
- Safety Yellow End Ramps - Enhance operational safety by clearly delineating the edges of the scale
- Robust Construction - Includes durable components such as 1/2” x 4-1/2” wedge anchors, ensuring long-lasting reliability even under heavy-duty use
- Trusted by Industry Leaders - Utilized at freight companies and major US airline cargo hubs, underscoring the reliability and accuracy trusted by top-tier industry players
Details
B-TEK's Dual Ramp Cargo Scales are expertly designed to meet the demanding needs of weighing goods from ships, trucks, and aircraft. Engineered for seamless integration with lift trucks and pallet jacks, these scales ensure a smooth transition from floor to scale. Widely utilized by freight companies and major US airlines, B-TEK Cargo Scales are the industry standard for efficiency and accuracy at cargo hubs.
Specifications
- COC: Non-NTEP
- Type: Above ground with (2) ramps
- Scale Capacity: 30,000 x 10 lb
- Scale Height: 5-1/2"
- Available Sizes: 10' x 10' & 20' x 10'
- Weighbridge: 1/2" carbon steel tread plate with formed channel sub-structure
- End Load Capacity: 100% full scale and end load capacity
- Deck: Top access junction box, leveling foot adjustment holes and threaded lifting eyebolt holes: 5/8"-11 eyebolt
- Dual 4' ramps, painted safety yellow
- Paint System: Alkyd Enamel
- Load Cell: Plated alloy steel, 350 Ohms, 3.0 mV/V, FM Approved
- Leveling Foot: B-TEK stainless steel rigid foot - 3.00" diameter base
- Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
- Includes: B-TEK Load Cell Cable: required cables from scale to indicator / Wedge Anchors: 1/2" x 4.25" for scale and ramps
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
3-Years on weighbridge steel structure / 2-Year on load cells, junction box and summing board
