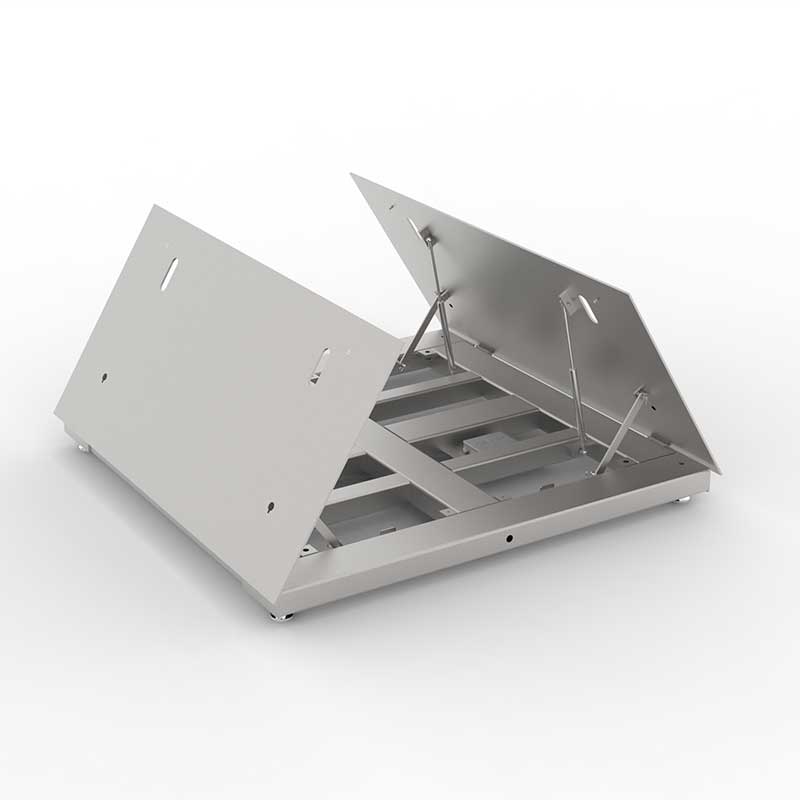

Clydesdale Stainless Steel Lift Deck
The B-TEK Stainless Steel Lift Deck floor scale is expertly engineered for heavy wash down environments, making it an ideal choice for chemical plants, zoos, veterinary clinics and food processing facilities.
- Corrosion-resistant Stainless Steel Construction - Built to withstand harsh environments, ensuring long-lasting durability and reliability
- Gas Shock Lifting Mechanism - Simplifies lifting and lowering, allowing a single operator to handle the process with ease
- Versatile Sizing Options - Available in 48" x 48" single lift decks and larger double-door lift decks to accommodate various needs
- Ideal for Heavy Wash Down Environments: Perfectly suited for use in chemical plants, zoos, veterinary clinics, and food processing plants where cleanliness is crucial
Details
The B-TEK Stainless Steel Lift Deck floor scale is expertly engineered for heavy wash down environments, making it an ideal choice for chemical plants, zoos, veterinary clinics and food processing facilities. Designed to simplify maintenance, it features gas shocks that enable smooth and effortless lifting by a single operator. Optionally coming with a stainless-steel pit frame, this scale ensures easy access for thorough washdowns, thereby minimizing buildup over time.
Specifications
- NTEP COC: 94-092A4
- Type: Above ground or pit
- Scale Capacity: 2,500 - 5,000 lb
- End Load Capacity: 80% for 2.5K capacity / 100% for 5K capacity
- Scale Height: 4-3/8" nominal height, adjustable
- Available Sizes: 3' x 3' - 4' x 6' - Custom sizes upon request
- Weighbridge: 1/4" 304 stainless steel SMOOTH plate with structural tube frame
- Deck: Lifting handles on top plate with dual gas shocks to aid in raising
- Finish: All exposed surfaces are media blasted to a clean, consistent appearance
- Load Cell: Stainless steel (IP67), 350 Ohms, 3.0mV/V
- 2.5K capacity: (4) 1,000 lb
- 5K capacity: (4) 2,500 lb cells by request in Clydesdale
- 5K capacity: (4) 4,000 lb cells standard in Clydesdale
- Optional hermetically sealed (IP68) cells are available for any capacity listed above
- Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5" diameter base
- Junction Box: Side access NEMA 4 junction box with signal trim summing board
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
3-Years on weighbridge steel structure
2-Years on load cells, junction box, and summing board
