Details

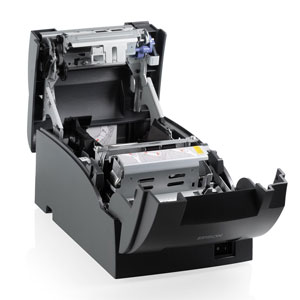

The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load and clamshell covers for easy access and maintenance, the TM-U220 is reliable and prints on plain paper.

Specifications

  • Print method: 9-pin, serial impact dot matrix
  • Column capacity: 40/42 or 33/35
  • Character size: 1.2 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H) mm
  • Interfaces: RS-232C, Bi-directional parallel, Connect-It Family
  • Dealer option: USB, 10 Base-T I/F
  • Data buffer: 4 kb or 40 bytes
  • Print speed: 4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi)
  • Paper dimensions: 57.7 ±0.5mm, 69.5 ±0.5mm, 76 ±0.5mm (W), x dia. 83
  • Paper thickness: 0.06 to 0.085
  • Copy Capacity: One original and one copy
  • Power: AC adapter (included)
  • Power consumption: 24 V
  • D.K.D. function: 2 drivers
  • Reliability
  • MTBF: 18 x 10 to the 4th power hours
  • MCBF: 18 x 10 to the 6th power lines
  • Overall dimensions (mm):
  • Type A: 160 (W) x 286 (D) x 157.5 (H)
  • Type B: 160 (W) x 248 (D) x 138.5 (H)
  • Type C: 160 (W) x 248 (D) x 138.5 (H)
  • Mass Approx:
  • Type A: 2.7 kg
  • Type B: 2.5 kg
  • Type C: 2.3 kg
