Details

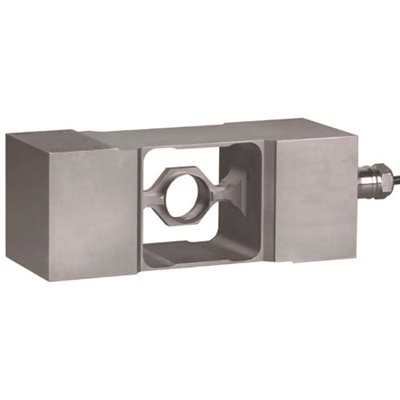

The Flintec PCB Single-Point Load Cell is the high capacity end of the hermetically sealed load cell range from Flintec. Providing all of the high accuracy performance for trade approved weighing scales-but available in a wide range of capacities-all in one sensor body size. Full stainless steel construction ensures the PCB load cell is capable of surviving the tough environments in food and chemical processing applications.

NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 2.0 mV/V
  • Input Resistance: 1100 ± 50 ohms
  • Output Resistance: 960 ± 50 ohms
  • Material/Finish: Stainless steel
  • Temperature: Compensated 14° to 150° F / -18° to 65° C
  • Operating -40° to 176° F / -40° to 80° C
  • Safe Overload: 200% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Combined Error: 0.02% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Hermetically sealed - IP68
  • Cable Length: 10 ft
  • Approvals: NTEP FM Approved

Max Cell Capacity

  • 100 kg
  • 250 kg
  • 500 kg
  • 1,000 kg
