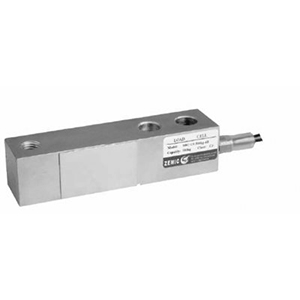

ZEMIC H8C Single-Ended Shear Beam
This ZEMIC H8C load cell is a safe and anti-explosive product that can be used in hazardous environments.
Details
The ZEMIC H8C Single-Ended Shear Beam is ideal for electronic platform scales, hopper scales, and other electronic weighing devices. This ZEMIC H8C load cell is a safe and anti-explosive product that can be used in hazardous environments. Offering a wide range of capacities, this load cell also has a cable length of 20 ft.
Interchangeable Products: Revere 5123, HBM B35, Tedea 3420/3421, Celtron SQB, Sensortronics 65023, Coti CG-23, Artech 30310, RL39123, RL32018, RL35023, Totalcomp TSB, Transcell SBS
Specifications
- Material: Alloy steel
- Max No. of Verification Intervals: 5000/10000 Nmax
- Min Load Cell Verification Intervals: Class III/IIIL Vmin
- Output Sensitivity: 2.0 ± 0.002 /
- 3.0 ± 0.008 mV/V
- Input Resistance: 350 ± 3.5 ohms
- Output Resistance: 350 ± 3.5 ohms
- Insulation Resistance: =5000 (50 VDC)
- Temperature:
- Compensated 14° to 104° F / -10° to 40° C
- Operating -31° to 158° F / -35° to 70° C
- Excitation, Recommended: 5~12 V (DC) Excitation, Max: 18 V (DC)
- Safe Overload: 150% Full scale
- Ultimate Overload: 300% Full scale
- Seal Type: Environmentally sealed - IP67
- Cable Length: 20 ft
Max Cell Capacity
- 250 lb
- 4,000 lb
- 750 lb
- 500 lb
- 1,000 lb
- 1,500 lb
- 2,000 lb
- 2,500 lb
- 3,000 lb
- 5,000 lb
- 10,000 lb
- 15,000 lb
- 20,000 lb
Loading Resources ...
Frequently Asked Questions
Revere 5123, HBM B35, Tedea 3420/3421, Celtron SQB, Sensortronics 65023, Coti CG-23, Artech 30310, Rice Lake RL39123, Rice Lake RL39123, Totalcomp TSB, Transcell SBS
