Details

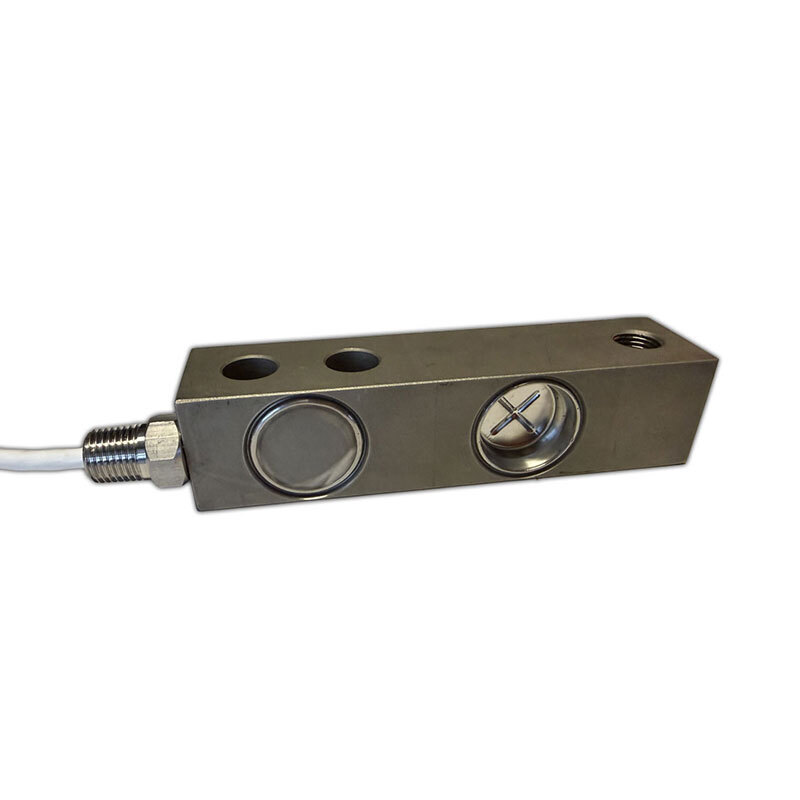

The Sensortronics 65083S welded seal, precision load cell offers exceptional performance and reliability in hostile environment applications typical of food and chemical processing. Designed for single or multiple-cell installations, the 65083S load cell is provided with a threaded load hole for easy adaptation of mounting hardware or leveling feet typical of floor scales. Offered in capacities ranging from 1,000 to 10,000 lb, the 65083S comes with 20 ft of standard black cable.

Interchangeable Products: Rice Lake RL35082

NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 2.0 mV/V
  • Input Resistance: 343 - 357 ohms
  • Output Resistance: 349 - 355 ohms
  • Material/Finish: Stainless steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating 0° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Nonlinearity: 0.03% Full scale
  • Hysteresis: 0.02% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Welded gage cover - IP69
  • Cable Length: 20 ft Teflon cable
  • Approvals: NTEP FM Approved

Max Cell Capacity

  • 4,000 lb
  • 1,000 lb
  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
