Details

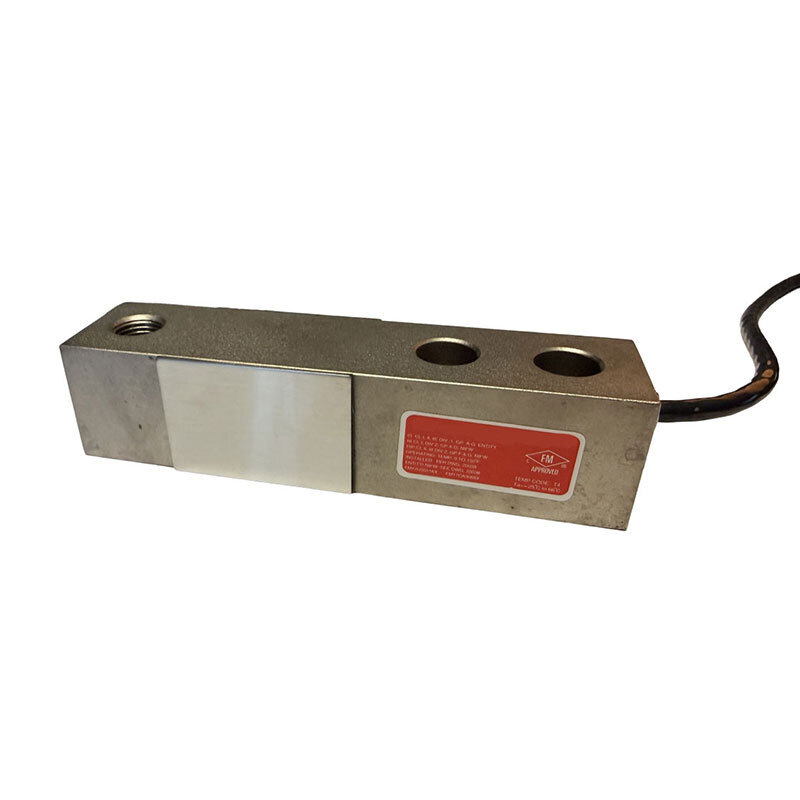

The Sensortronics 65023S stainless steel, single-ended beam load cell is designed for low-profile floor scales and is environmentally protected with stainless steel side plates. The 65023S load cell has a threaded hole for loading with capacities ranging from 1,000 to 10,000 lb.

Interchangeable Products: RL39123, RL32018, RL35023.

NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 343 - 357 ohms
  • Output Resistance: 349 - 355 ohms
  • Material/Finish: Stainless Steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating 0° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Nonlinearity: 0.03% Full scale
  • Hysteresis: 0.02% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft

Max Cell Capacity

  • 4,000 lb
  • 1,000 lb
  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
  • 20,000 lb
