Details

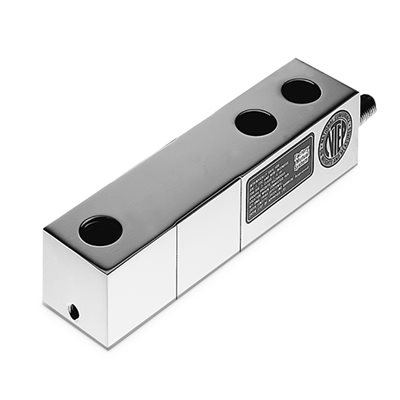

The Revere 5123 low-cost, high-performing, single-ended beam load cell is designed for low-profile scales and process weighing in both trade and non-trade applications. Its capacities range from 1,000 to 10,000 lb. This load cell comes complete with 20 ft of load cell cable.

Interchangeable Products: RL30000, RL39123, RL32018, RL35023, Tedaea 3411, Artech 30310, ZEMIC H8C

NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 350 ohms
  • Output Resistance: 352 ohms
  • Material/Finish: Alloy steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating 0° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15V max)
  • Combined Error: 0.025% Full scale
  • Insulation Resistance: >1000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft
  • Approvals: NTEP FM Approved

Max Cell Capacity

  • 4,000 lb
  • 1,000 lb
  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
