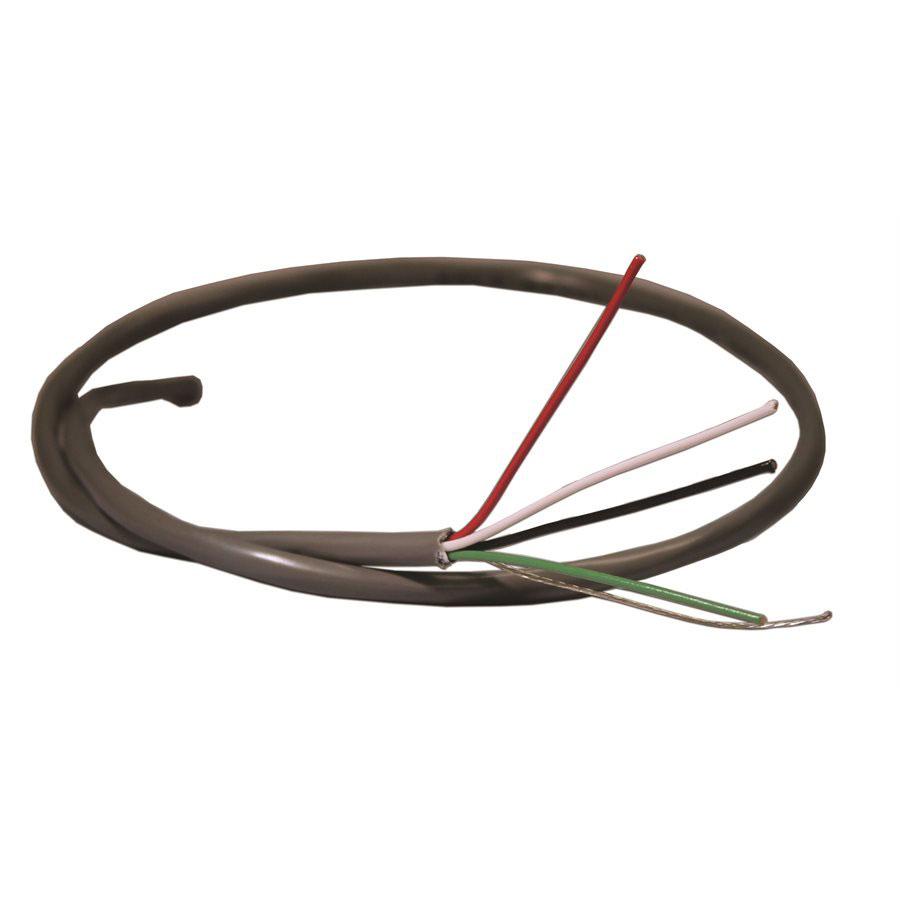

4 Conductor Interface Cable
https://www.b-tek.com/products/parts-accessories/load-cells/load-cell-hardware/4-conductor-interface-cable-861-000001
Share this product beyond Facebook and Twitter!
Product Code:
861-000001
Our communication cable is sold by the ft, and by the 500ft roll with a 5% additional discount. Please let us know which length/roll you would prefer.
- Number of Conductors: 4
- AWG Size: 18
- Conductor Stranding: 7x26
- Conductor Type: Bare copper
- Nominal DCR: 6.2 Ohm/1000ft
- Insulation Type: Thermoplastic
- Shield Type: Overall 100% Aluminum Foil
- Nom. Cap. Between Conductors: 40 pF/ft
- Nom. Cap. Conductor to Shield: 79 pF/ft
- Jacket Type: PVC
- UL Flammability: UL1666 Vertical Shaft
- CSA Flammability: FT4
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
Our communication cable is sold by the ft, and by the 500ft roll with a 5% additional discount. Please let us know which length/roll you would prefer.
