Details

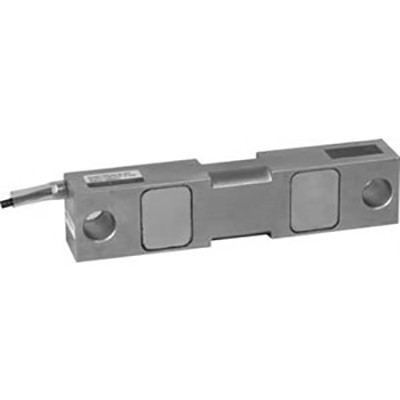

The ZEMIC H9D Double-Ended Shear Beam is ideal for truck scales, track scales, and other heavy weighing devices. This ZEMIC H9D load cell has a sealed construction and a low profile for easy installation. Offering a wide range of capacities, this load cell also has a cable length of 20 ft.

Specifications

  • Max No. of Verification Intervals: 5000/10000 Nmax
  • Min Load Cell Verification Intervals: Class III/IIIL Vmin
  • Output Sensitivity: 3.0 ± 0.008 mV/V
  • Input Resistance: 700 ± 7 ohms
  • Output Resistance: 703 ± 4 ohms
  • Insulation Resistance: =5000 (50VDC)
  • Temperature:
  • Compensated 14° to 104° F / -10° to 40° C
  • Operating -31° to 158° F / -35° to 70° C
  • Seal Type: Environmentally sealed - IP67
  • Excitation, Recommended: 5~12 V (DC)
  • Excitation, Max: 18 V (DC)
  • Safe Overload: 150% Full scale
  • Ultimate Overload: 300% Full scale
  • Cable Length: 20 ft
