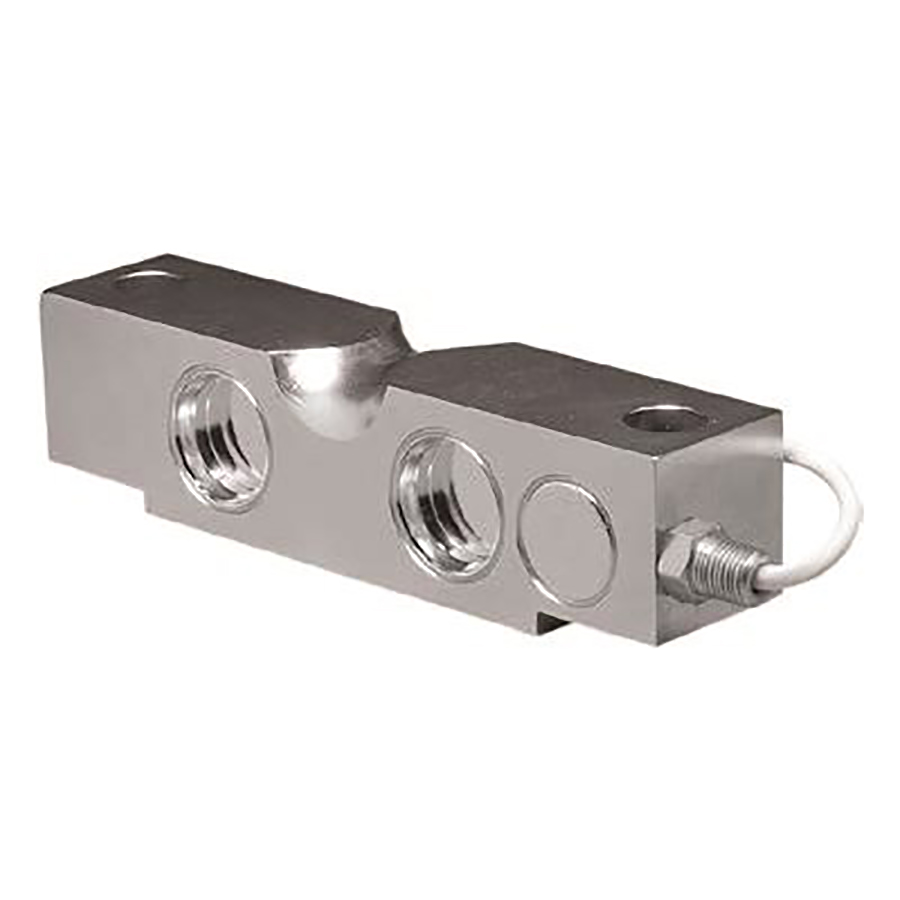

Sensortronics 65058S-1000W Double-Ended Shear Beam
The Sensortronics 65058S-1000W Double-Ended Shear Beam is ideal for hostile environments, vehicle scales, vessel scales, rail scales, and other heavy-duty weighing operations. The high precision, stainless steel shear beam is rated for capacities of 10,000 to 200,000 lb, and it comes complete with 35 ft of load cell cable length.
Interchangeable Products: Rice Lake RL75060S
Details
The Sensortronics 65058S-1000W Double-Ended Shear Beam is ideal for hostile environments, vehicle scales, vessel scales, rail scales, and other heavy-duty weighing operations. The high precision, stainless steel shear beam is rated for capacities of 10,000 to 200,000 lb, and it comes complete with 35 ft of load cell cable length.
Interchangeable Products: Rice Lake RL75060S
Specifications
- Full Scale Output: 3.0 mV/V
- Input Resistance: 686 - 714 ohms
- Output Resistance: 699 - 707 ohms
- Material/Finish: Stainless Steel
- Temperature: Compensated 14° to 104° F / -10° to 40° C
- Operating 0° to 150° F / -18° to 65° C
- Safe Overload: 150% Full scale
- Rated Excitation: 10 V DC (25 V max)
- Combined Error: 0.03% Full scale
- Insulation Resistance: >1000 megohms
- Seal Type: Welded seal - IP67
- Cable Length: 35 ft
- Approvals: NTEP FM Approved
Max Cell Capacity
- 10,000 lb
- 20,000 lb
- 25,000 lb
- 40,000 lb
- 50,000 lb
- 60,000 lb
- 75,000 lb
- 100,000 lb
