Details

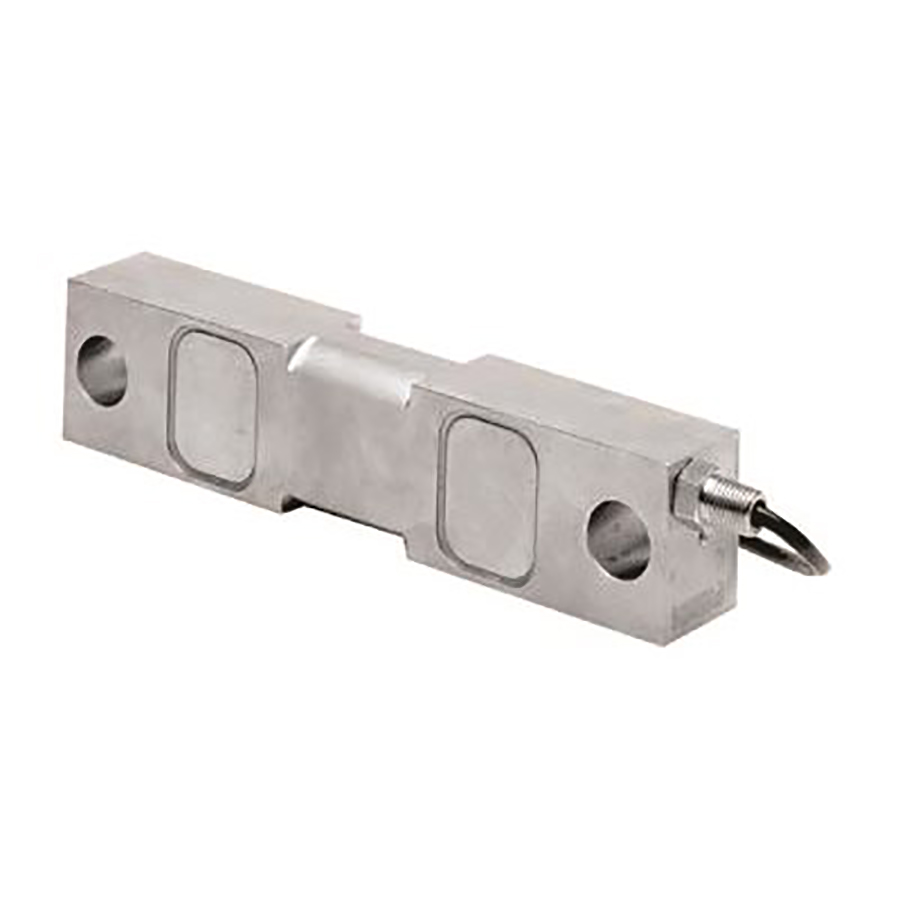

The Sensortronics 65016 is nickel-plated alloy steel, double-ended shear beam load cell that is environmentally protected with stainless steel side plates. It is designed for center mounting and double link loading. Its capacities range from 1,000 to 75,000 lb, and it comes complete with 25 ft of load cell cable.

Interchangeable Products: Rice Lake 75016, Celtron DSR, Revere 5203

FMApproved thumb

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 700 ± 14 ohms
  • Output Resistance: 703 ± 4 ohms
  • Material/Finish: Nickel-Plated Alloy Steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating 0° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 15 V DC (25 V max)
  • Combined Error: 0.03% Full scale
  • Insulation Resistance: >1000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 25 ft

Max Cell Capacity

  • 1,000 lb
  • 1,500 lb
  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
  • 15,000 lb
  • 20,000 lb
  • 25,000 lb
  • 35,000 lb
  • 50,000 lb
  • 75,000 lb
