Details

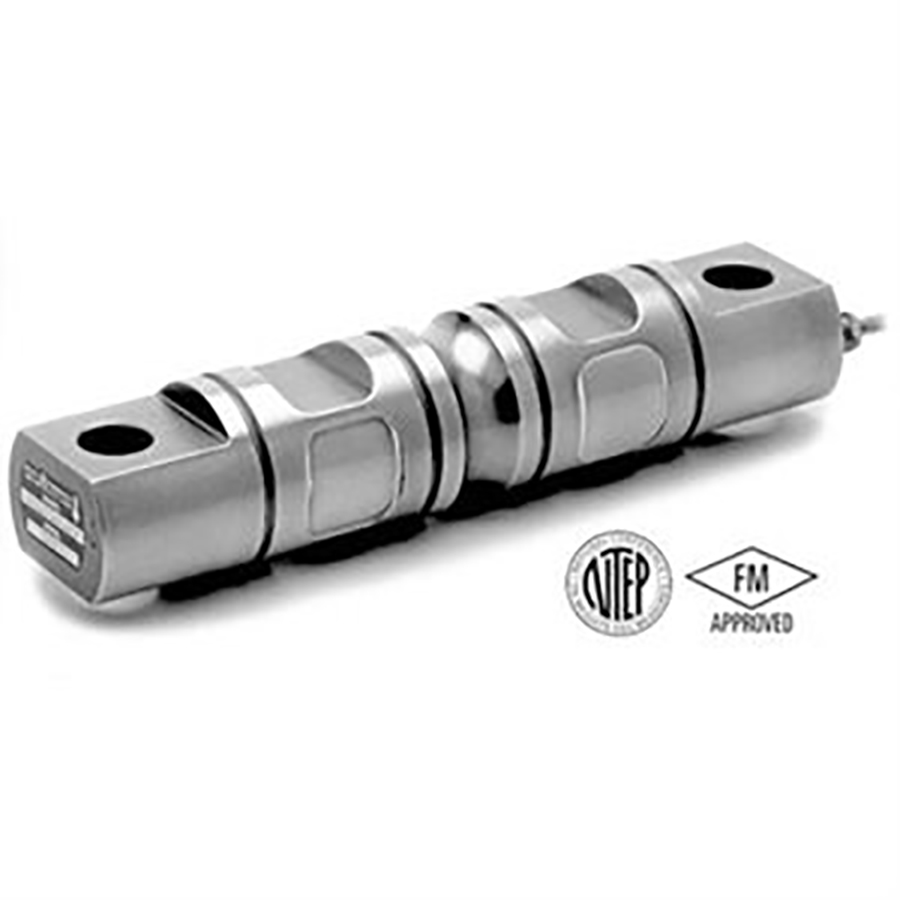

The Revere 5103 alloy steel, double-ended beam load cell is designed for truck, track, and process weighing with high accuracy, low profile, tolerance to non-axial loading and a redundant seal. NTEP Certified capacities range from 150,000 to 250,000 lb, and it is supplied with 30 ft of load cell cable.

Interchangeable Products: Rice Lake RL70000, Coti CG-5103, Zemic H9C

NTEPLogo

NTEPLogo

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 700 ± 7 ohms
  • Output Resistance: 700 ± 7 ohms
  • Material/Finish: Nickel Plated Alloy Steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating -40° to 176 °F / -40° to 80° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Combined Error: 0.025% Full scale
  • Insulation Resistance =5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 5K-20K 20 ft, 30K-75K 30 ft

Max Cell Capacity

  • 5,000 lb
  • 10,000 lb
  • 20,000 lb
  • 30,000 lb
  • 40,000 lb
  • 50,000 lb
  • 60,000 lb
  • 75,000 lb
  • 100,000 lb
Loading Resources ...

Frequently Asked Questions

Rice Lake RL70000, Coti CG-5103, Zemic H9C

NTEP Certified capacities range from 150,000 to 250,000 lb.
