Details

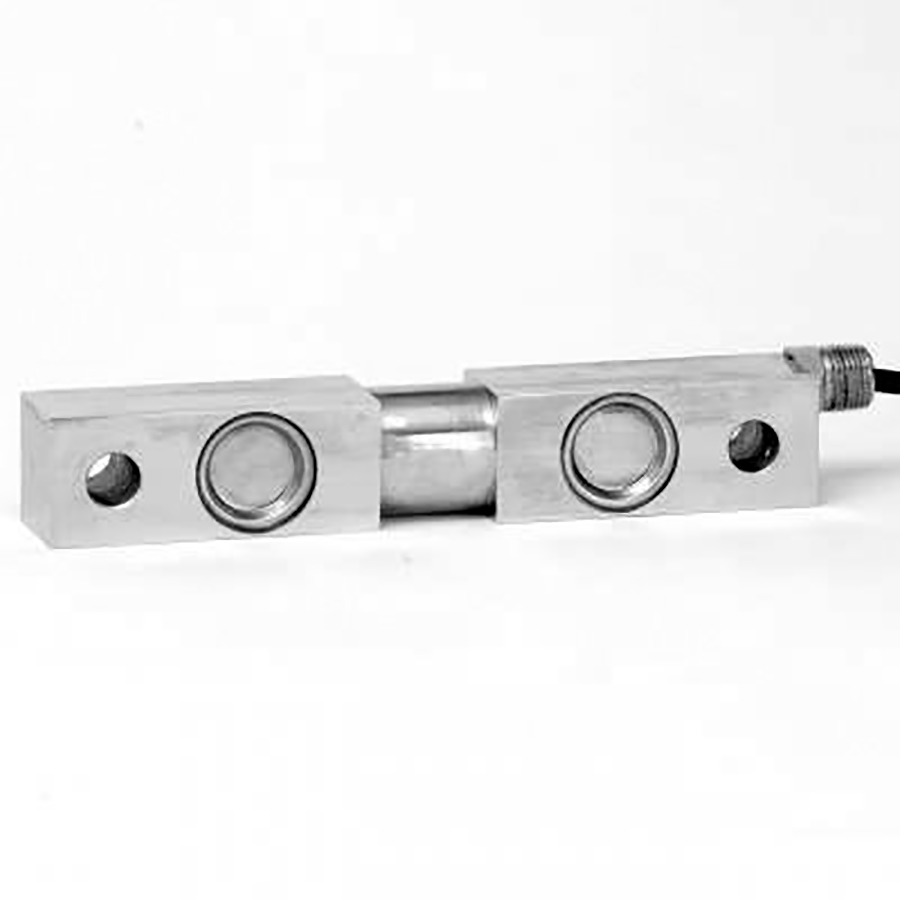

The Coti CG-16 Double-Ended Shear Beam Load Cell is ideal for truck scales, track scales, and other heavy weighing devices. This Coti CG-16 load cell has a hermetically-sealed construction and a low profile for easy installation.

Interchangeable Products: Artech 70510, Celtron DSR, Revere 5203, Rice Lake RL75016, Sensortronics 65016, Totalcomp GDE16, Totalcomp TDE16, Transcell DBS, ZEMIC H9D

NTEPLogo

FMApproved thumb

Specifications

  • Rated Output: 3.00 mV/V
  • Safe Overload: 150% Full scale
  • Excitation Voltage: 10-20 V AC/DC
  • Input Resistance: 700 + 10 ohms
  • Output Resistance: 700 + 5 ohms
  • Non-linearity: + 0.03% Full scale
  • Hysteresis: + 0.02% Full scale
  • Repeatability: + 0.01% Full scale
  • Creep: + 0.02% Full scale
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating 4° to 140° F / -20° to 60° C
  • Insulation Resistance: >5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 4 conductor, 50 ft

Max Cell Capacity

  • 1,000 lb
  • 1,500 lb
  • 2,000 lb
  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
  • 15,000 lb
  • 20,000 lb
  • 25,000 lb
  • 50,000 lb
  • 75,000 lb
  • 100,000 lb
  • 125,000 lb
