Details

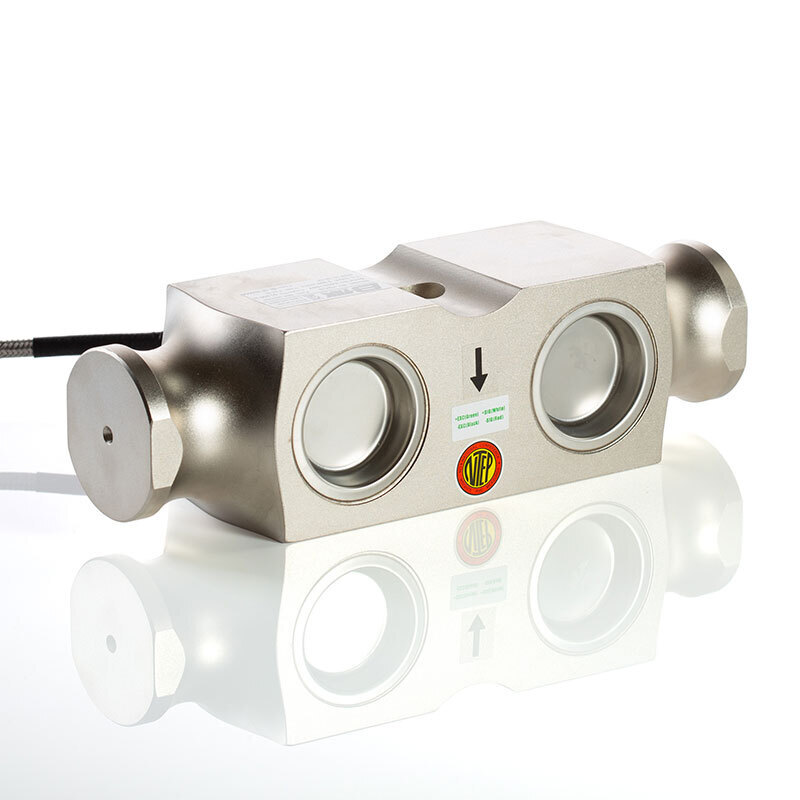

The B-TEK BT-TSCS-65K-B60 Double-Ended Shear Beam is ideal for platform scales, on-board weighing, weighbridges and silo hopper weighing. It is designed with a low-profile construction for easy installation. It also comes equipped with a 4 conductor braided shield, 60-feet long cable length.

NTEPLogo

Specifications

  • Rated Output: 3.00 mV/V
  • Safe Overload: 150% Full scale
  • Excitation Voltage: 10-20 V AC/DC
  • Input Resistance: 700 + 10 ohms
  • Output Resistance: 700 + 5 ohms
  • Non-linearity: + 0.03% Full scale
  • Hysteresis: + 0.02% Full scale
  • Repeatability: + 0.01% Full scale
  • Creep: + 0.02% Full scale
  • Insulation Resistance: >5000 megohms
  • Temperature: Compensated 14° to 104° F / 10° to 40° C
  • Operating -4° to 140° F / -20° to 80° C
  • Seal Type: Environmentally sealed - IP67

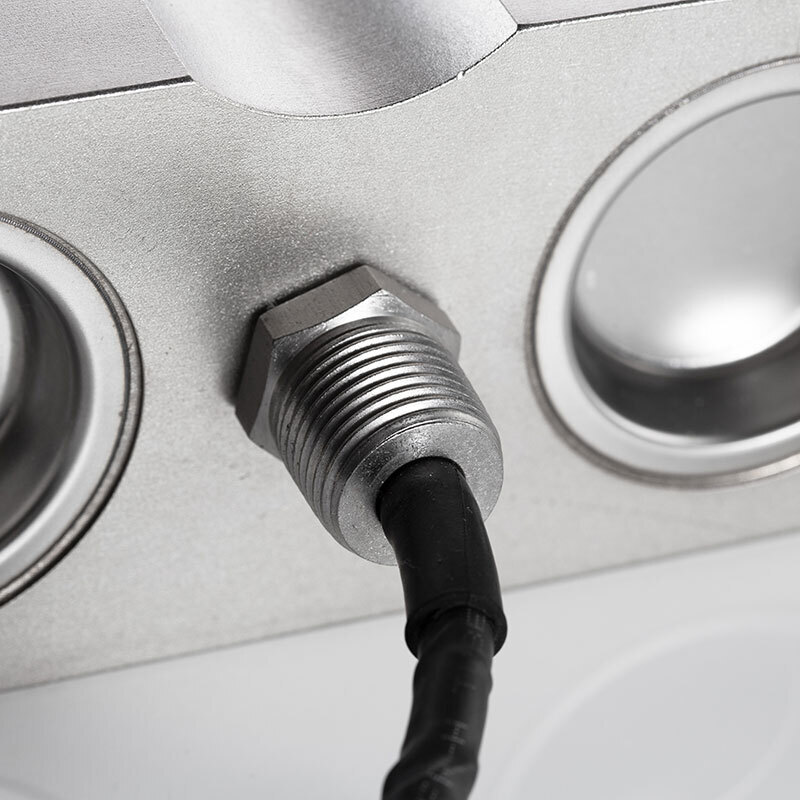

  • Cable Length: 4 conductor, 60 ft braided shield
