Details

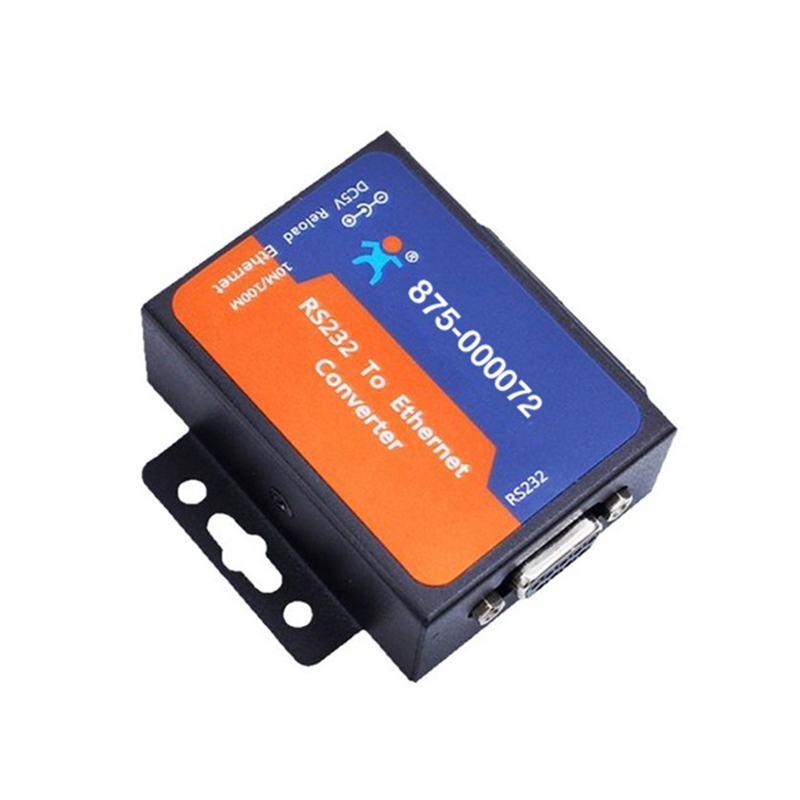

Easy to setup desktop converter to stream weight data from any indicator's serial port over a TCP/IP Ethernet Connection.  This converter supports up to 5 TCP/IP port connections.  A DB9 male to DB9 Female null modem cable and power supply is included with the converter, we suggest also purchasing item 899-100275 when connecting to a T103 or T104P indicator.  If already using all of the serial ports on a DD700, additional ports can be installed.  See item 899-100138 for DD700 serial card.

Specifications

  • 10/100Mbps Ethernet port, support Auto-MDI/MDIX.
  • Support TCP Server, TCP Client, UDP Client, UDP Server, HTTPD
  • Support Baud rate from 600bps to 230.4bps; Support None, Odd, Even, Mark,
  • Support heartbeat packet and identity
  • Support RS232, RS422 and RS485
  • Support web server, AT command and setup software to configure
  • Support timeout reset
  • Support TCP Client non-persistent
  • Support DHCP/Static
  • Support software/hardware
