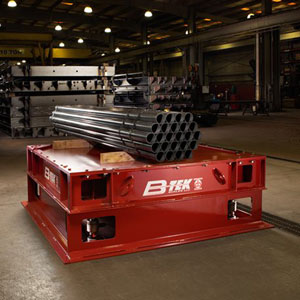

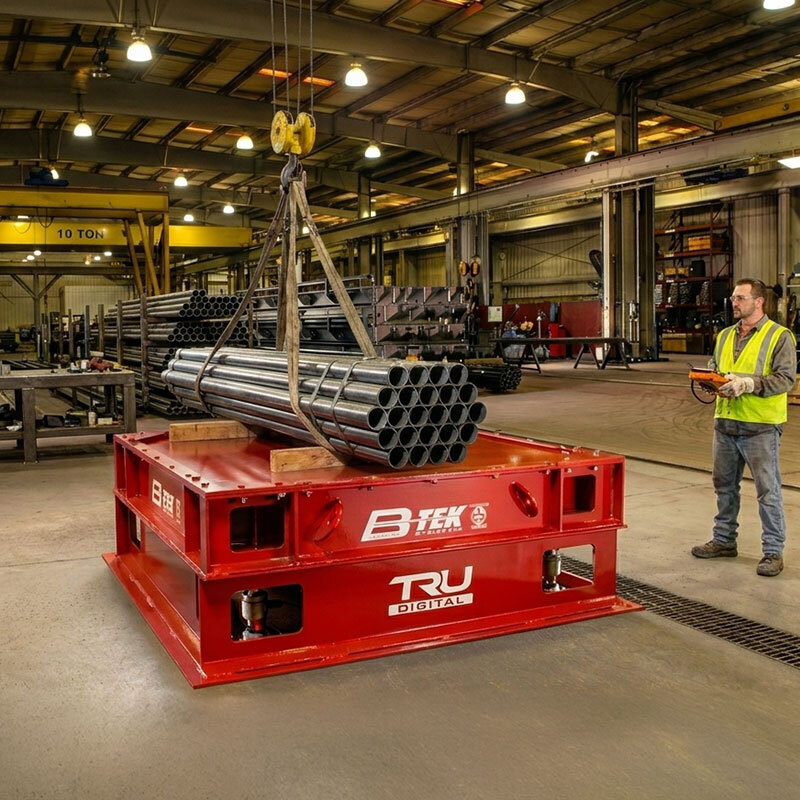

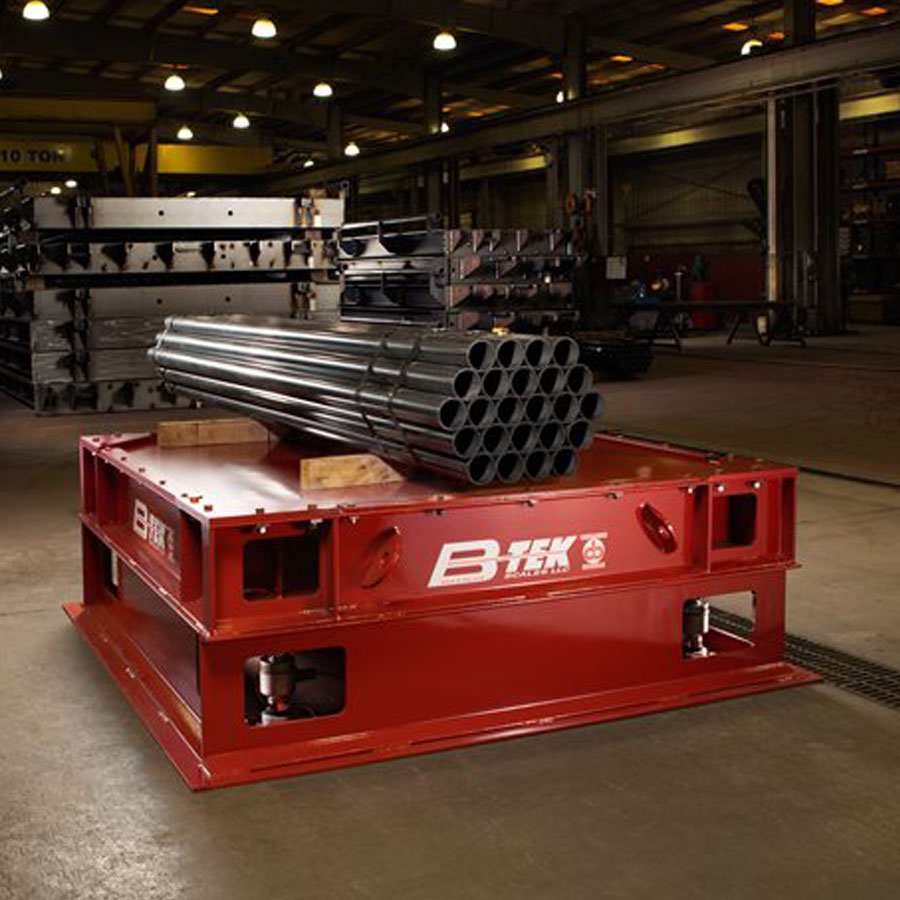

Colossus HI-IMPACT Digital Coil Scale
Designed for placement directly within the manufacturing line, the Colossus HI-IMPACT Digital Coil Scale is designed to meet the rigorous demands of the metal manufacturing and processing industry. With its robust structural steel weighbridge and CPD-M digital load cells, this scale ensures legal trade accuracy for coil, pipe and steel processing applications.
- TruDigital Technology - Delivers repeatable, accurate and fully digital weighing performance
- Robust Design - Heavy-duty weighbridge and protective frame for industrial durability
- Shock Load Protection - Urethane blocks absorb impact and vibration, ensuring smooth operation
- Customizable Deck - 1/2" smooth carbon steel deck available in thicknesses up to 1"
- High Capacity - Supports loads up to 120,000 lbs, suitable for demanding applications
- V-Deck Option Available - Ensures large steel coils remain steadily in place
Details
The Colossus HI-IMPACT Digital Coil Scale is designed to meet the rigorous demands of the metal manufacturing and processing industry. With its robust structural steel weighbridge and CPD-M digital load cells, this scale ensures legal trade accuracy for coil, pipe and steel processing applications. Featuring B-TEK’s TruDigital technology and Nexia™ remote monitoring, the Colossus offers real-time performance insights, boosting process efficiency. Available in customizable sizes and built for high-capacity loads, it integrates seamlessly within your production line for optimized operational efficiency.
Specifications
- NTEP COC: 97-132A1
- Scale Capacity: up to 120,000 lbs.
- Scale Height: 29”
- Available Sizes: 6' x 4' to 20' x 10'
- Weighbridge Deck: 1/2” smooth carbon steel, available up to 1" thick
- Steel Preparation: Commercial blast cleaning SSPC-SP6
- Paint System: Cross linked two-part epoxy primer followed by polyurethane topcoat
- Electrical:

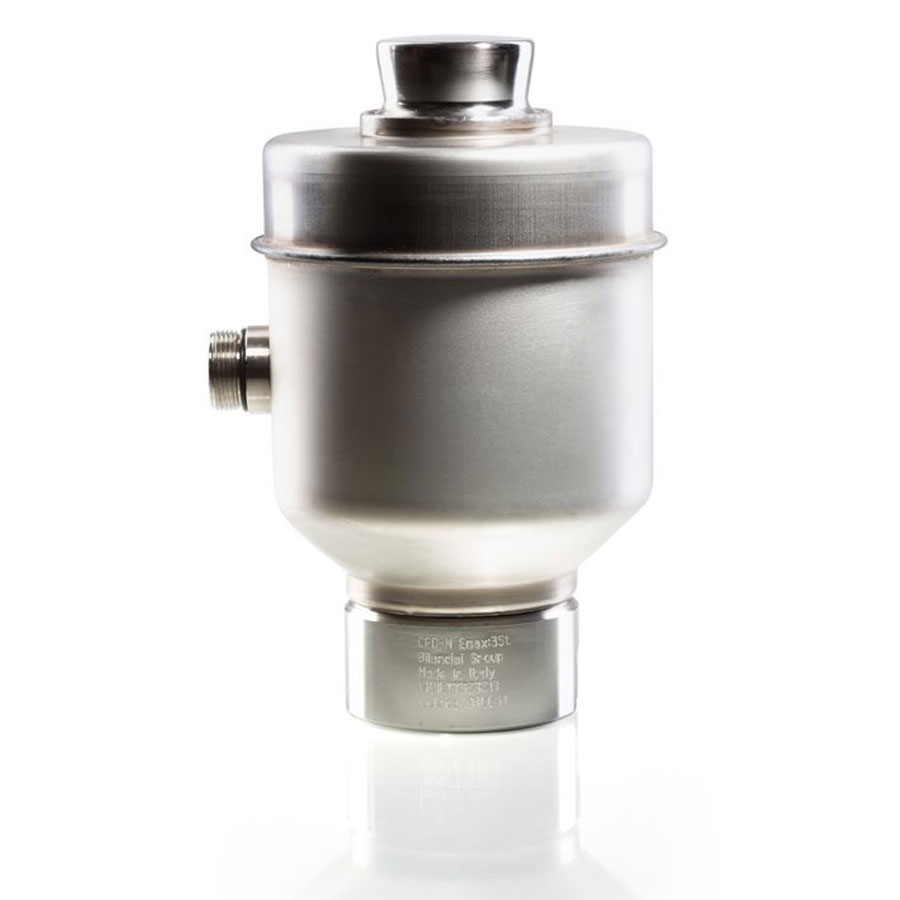

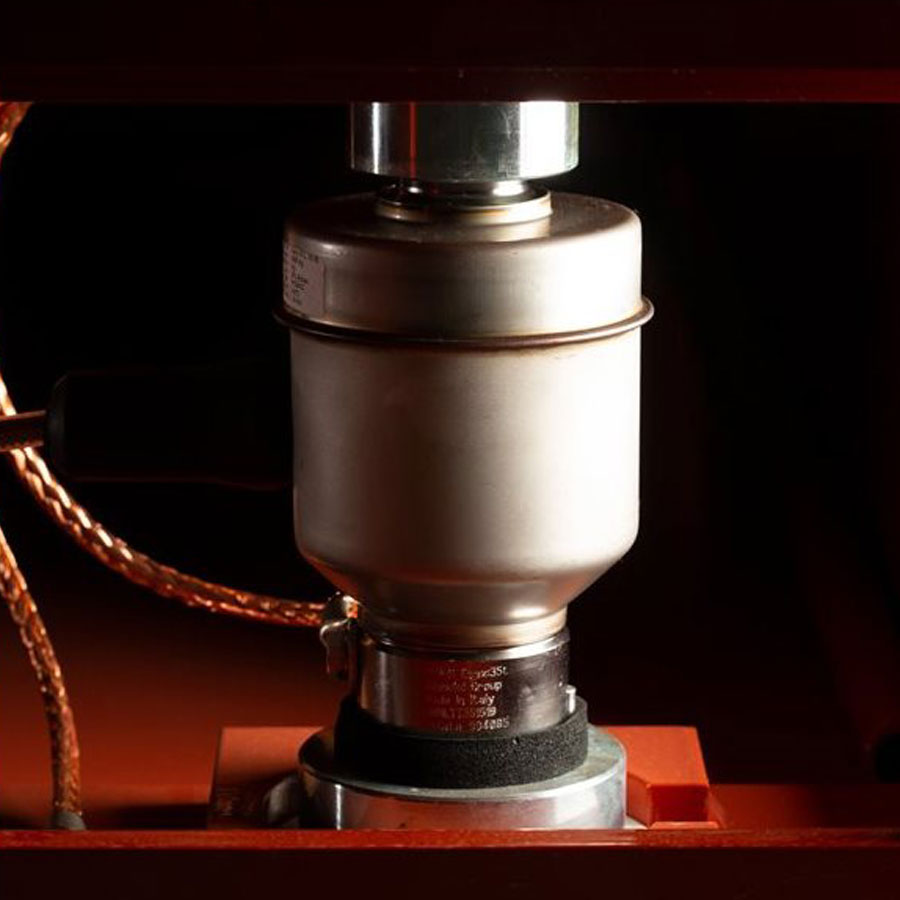

- Load Cells: (4) 77K CPD-M digital compression column load cells with stainless steel, hermetically sealed (IP68) construction (also available in analog)
- Load Cell Cable: Stainless steel sheathed cable with clear polymer coating and water-tight connectors
- Junction Box: NEMA 4X stainless steel enclosure
- Indicator: DD700 desktop digital indicator
Input
- Digital
Industry Solution
- Manufacturing
- Steel
Capacity
- 40,000 lb
- 60,000 lb
- 80,000 lb
