Details

Functions

Serial communicator/gateway
Serial RS232/485 port
Baud rate -- 1200bps to 128kbps
Max stations -- 31
Isolation -- Galvanic isolation
Max nodes -- 31

Modbus RTU
Modes -- Master
Functions supported -- 1 / 2 / 3 / 4 / 5 / 6 / 15 / 16 / 22 / 23
Max number of commands -- 150
Input data size -- 1500bytes
Output data size -- 1500bytes

Environment

- Installation altitude -- up to 2000m

PROFIBUS
Mode -- PROFIBUS DPV1 Device (slave)
Input data size -- 244bytes
Output data size -- 244bytes
Baude rate -- Automatic baud rate detection up to 12Mbit/s
Rotary switches -- PROFIBUS slave address setting via on-board rotary switches or web interface
Features -- Supports Sync and Freeze and Watchdog
I&M records -- Manufacturer data (I&M0) / Tag information (I&M1) / Date/Time (I&M2) / Description (I&M3)
GSD -- GSD file available

Configuration software -- Web based configuration
Configuration ports -- Dedicated 10/100Mbit RJ45 Ethernet configuration port and Ethernet ports

- Security
Secure boot -- Ensures software authenticity
- Security switch -- Physical switch that enable/disable access to the web based configuration interface

Mean time between failure (MTBF) -- >1500000hr; Telcordia Method I Case 3 at 30°C

Design

Serial + PROFIBUS
4 x LED indicators (gateway status / PROFIBUS / sub-network / security sw.)
2 x push-buttons (reset / security sw.)

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Connection type

1 x RJ45 connector (10/100Mbit/s Ethernet configuration)
1 x 7-pole plug-in connector (serial RS-232/RS-485)
1 x 9-pin D-sub female connector (PROFIBUS)
1 x 3-poles plug-in screw connector (power)

Protection functions

reverse voltage protection
short-circuit protection

Communication protocol

PROFIBUS
RS-232
RS-485

Mounting mode

DIN rail (35/7.5 or 35/15) mounting

Speed

up to 12Mbit/s (PROFIBUS)

Degree of protection

IP20

Dimensions

H144mm x W27mm x D98mm

Material

Plastic housing (ABS / PC)

Ambient air temperature for operation

-25...+70 °C

Ambient air temperature for storage

-40...+85 °C

Current consumption

400mA (12Vdc; max.)
160mA (24Vdc; typical)

Contents

power connector
start-up guide
compliance information sheet

Compliant with standard(s)

CE 2014/30/EU
UL
UL94 V-0
KC
WEE
cULus file E214107

EMC
- EN 61000-6-2
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-6-4
- EN 55032

Environment
- IEC 60068-2-1 Ab
- IEC 60068-2-2 Bb
- IEC 60068-2-1 Ab
- IEC 60068-2-2 Bb
- IEC 60068-2-14 Nb
- IEC 60068-2-30 Db
- IEC 60068-2-78 Cab
- IEC 60068-2-78 Cab

Vibration and shock
- IEC 60068-2-27
- IEC 60068-2-6

EU - Declaration of Conformity
- EN 61000-6-4(2019) Emission standard for industrial environment
- EN 55016-2-3(2017) (Class A)
- EN 55032(2015) (Class A)
- EN 61000-6-2(2019) Immunity for industrial environment
- EN 61000-4-2(2009)
- EN 61000-4-3(2020)
- EN 61000-4-4(2012)
- EN 61000-4-5(2014) + A1(2018)
- EN 61000-4-6(2014)

UK - Declaration of Conformity
- EN 61000-6-4(2019) Emission standard for industrial environment
- EN 55016-2-3(2017) (Class A)
- EN 55032(2015) (Class A)
- EN 61000-6-2(2019) Immunity for industrial environment
- EN 61000-4-2(2009)
- EN 61000-4-3(2006) + A1(2008) + A2(2010)
- EN 61000-4-4(2012)
- EN 61000-4-5(2014) + A1(2018)
- EN 61000-4-6(2014)

Benefits

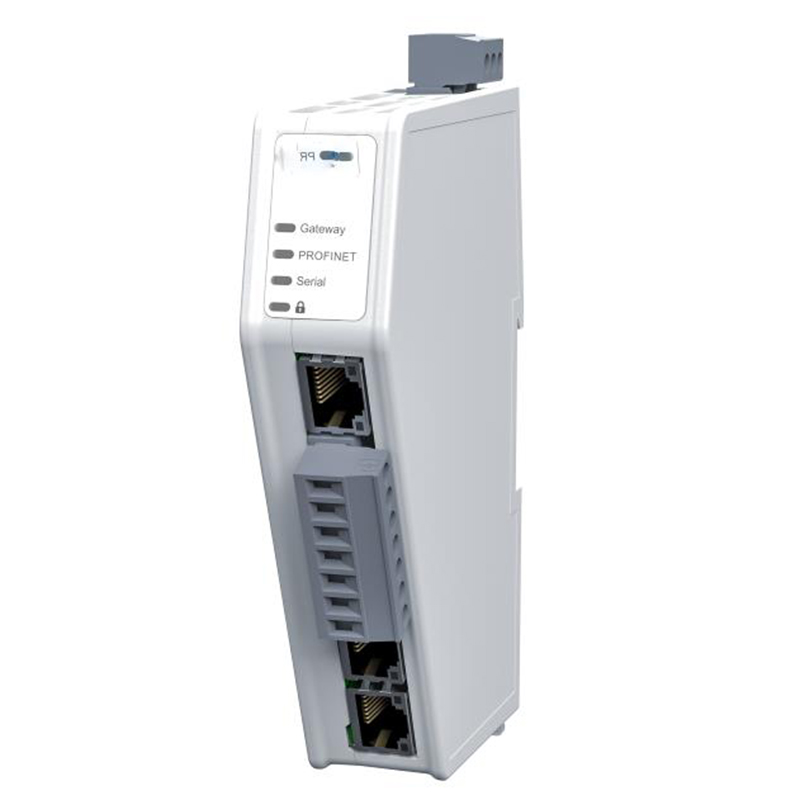

Serial Master - PROFINET IO-Device

- Integrate your serial RS-232/485 based industrial devices and equipment to PROFINET control systems without any changes to the device -- Just connect & configure and you're done
- The communicator can transfer large amounts of data is fast to configure thanks to its' drag and drop web interface and is built on trusted Anybus technology.
- Convert standard and proprietary RS-232/485 protocols
- Web-based drag and drop configuration interface
- -25...+70°C industrial temperature range
- Powered by award winning NP40 network processor

Convert almost any type of serial protocol
- The Communicator can convert both standard serial protocols such as Modbus RTU and proprietary serial request/response or produce/consume based protocols.

Transfer up to 1024bytes of data
- Demand for more data is constantly growing and the Communicator has been equipped to handle the challenge.
- It can transfer 1024bytes from the PLC to the Gateway and 1024bytes from the gateway to the PLC / 2048bytes in total.
- Support for up to 150 Modbus commands means even complex configurations with multiple nodes can be handled with ease.

Drag and drop web interface
- To make sure you spend as little time as possible configuring the Communicator -- we have built a graphical and responsive web-based user interface.
- No software needed to be installed -- just open your favorite web browser and get started.

Industrial temperature range
- An industrial operating temperature range of -25...+70°C ensures the Communicator can excel under harsh conditions.

Powered by proven NP40 technology
- The Communicator is built on the award-winning and proven Anybus NP40 network processor.
- With hundreds of thousands NP40s used in Embedded applications across the world -- it is the industry benchmark for reliable industrial communication.

Security switch
- Even with sophisticated security measures human error is still the main cause of security breaches.
- To simplify security -- we added a physical security switch on the Communicator.
- It locks your configuration and prevents any access to the web-based configuration interface.
- Just flip it when your configuration is done and watch the padlock LED on the product light up.

Ethernet configuration port
- With a dedicated Ethernet configuration port you don't need any special configuration cable. In addition it is easy to connect to the gateway to monitor network traffic.

Optimized for DIN-rail mounting
- The slim form factor / front facing network connectors / screw in serial cable connector and the neat cable tie ensure it is fast and simple to install and connect the Communicator.

Diagnostics
- When opening the Communicator web interface you immediately see the status of the PROFINET connection and serial connection.
- You can even see the status of individual serial nodes. It's also equipped with a serial log and an event log for further analysis.

Support
- Sometimes you run into a problem where you need help -- That's why we have included a support page in the user interface with contact information.
- There is even a button to generate a support package to simplify troubleshooting.

Serial features
- Selectable RS-232/485 interface
- 3ms serial update rate (selectable)
- Visual I/O data map to map serial data to industrial network
- Drag and drop frame builder for custom protocols with no programming required
- Trigger serial transactions from control system with triggers
- Transfer data between serial nodes with general data area
- Monitor and control serial nodes from control system with live list and data exchange control
- Ability to import Communicator Classic configuration file

PROFINET features
- PROFINET IO-Device (slave)
- Transfer up to 1024bytes to and from PROFINET (2048bytes total)
- 1ms minimum cycle time
- Conformance class B / Real-Time (RT)
- High robustness against network load / Netload Class III
- Dual RJ-45 Ethernet ports with 10/100Mbit full duplex
- Daisy chaining with integrated switch

Application type

Typical serial applications include variable frequency drives / sensors / actuators / human machine interfaces / barcode readers / RFID readers and industrial scales among others.

Humidity

0-95% relative humidity (RH; non-condensing)
