Details

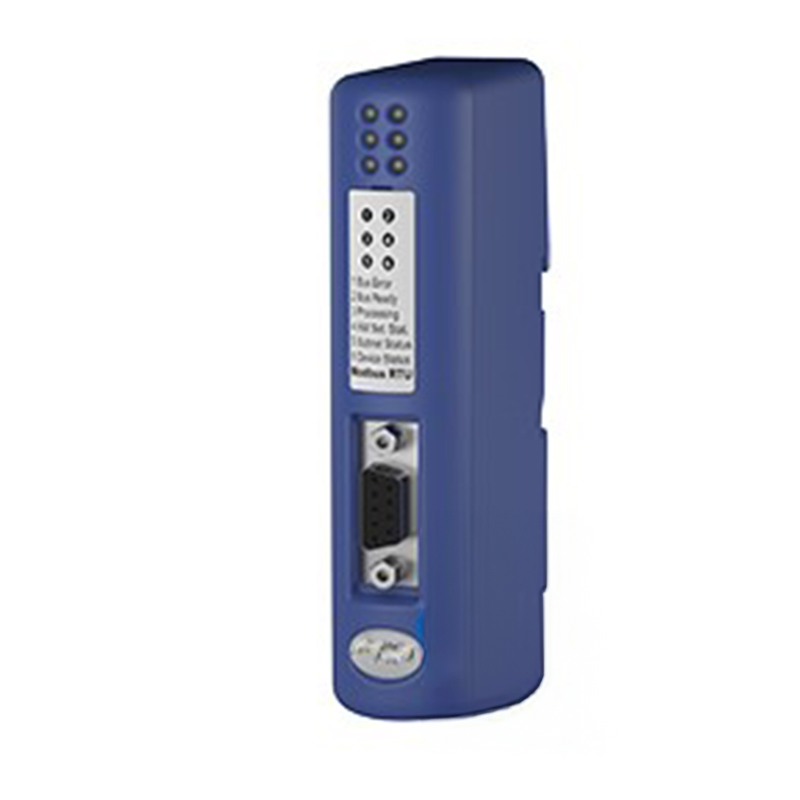

Serial communicator/gateway
Communicator
- Protocol -- Configurable RS-232/422/485 based produce/consume / query/response ASCII
- Max stations -- 31 (with RS485/422)
- Baud rate -- 1.2-57.6kbit/s
- Physical standards -- RS232/422/485
- Modbus Commands
-- 0x01 Read Coils
-- 0x02 Read Discrete Inputs
-- 0x03 Read Holding Registers
-- 0x04 Read Input Registers
-- 0x05 Write Single Coil
-- 0x06 Write Single Register
-- 0x07 Read Exception Status
-- 0x08 Diagnostics
-- 0x0B Get Comm Event Ctr
-- 0x0C Get Comm Event Log
-- 0x0F Write Multiple Coils
-- 0x10 Write Multiple Register
-- 0x11 Report Slave ID
-- 0x14 Read File Record
-- 0x15 Write File Record
-- 0x16 Mask Write Register
-- 0x17 Read/Write Multiple Registers
-- 0x18 Read FIFO
- DF1 Services
-- 0x01 Integrity Check
-- 0x02 Read Diagnostics
-- 0x03 Read Data
-- 0x04 Write Data

Environmental characteristics
- Reverse voltage protection
- Short circuit protection
- Galvanic isolation on sub-network
- MTTF -- >550000h / Telcordia Issue 2 / Method 1 Case 3 at 30°C
- Installation altitude -- up to 2000m

Immunity and emission for industrial environment
- Electrostatic discharge -- +/-4kV
- Electromagnetic RF fields
-- 10V/m 80MHz-1GHz
-- 3V/m 1.4GHz-2.0GHz
-- 1V/m 2.0GHz-2.7GHz
- Fast Transients -- +/-1kV
- Surge protection -- +/-1kV
- RF conducted interference -- 10V/rms
- Emission (at 10m)
-- 40dB 30MHz-230MHz
-- 47dB 30MHz-1GHz

Design

Serial + Modbus RTU
13 x configuration switches
6 x LED indicators (fieldbus/sub-network/device status)

Supply voltage (DC)

21.6-26.4Vdc (24Vdc nom.)

Connection type

1 x 9-pin D-sub female connector (Modbus RTU)
1 x 9-pin D-sub female connector (serial RS-232/RS-422/RS-485; sub-network)
1 x 2-poles plug-in connector (power)
1 x RJ11 (4P4C modular) PC connector

Protection functions

reverse voltage protection
short-circuit protection

Communication protocol

Modbus RTU
RS-232
RS-422
RS-485

Mounting mode

DIN rail (35/7.5 or 35/15) mounting

Speed

12kbit/s...57.6kbit/s (Modbus)

Degree of protection

IP20
NEMA 1

Dimensions

H120mm x W27mm x D75mm

Material

Plastic housing (ABS / PC)

Ambient air temperature for operation

0...+55 °C

Ambient air temperature for storage

-40...+85 °C

Current consumption

300mA (24Vdc; max.)
100mA (typical)

Contents

configuration cable RS-232 port
installation sheet
D-SUB with screw terminals for sub-network

Customs Tariff Number

8517620090

Compliant with standard(s)

CE
cULus listed
UL94 V-0
RoHS
EN 50022

UL (file number E203225) -- UL 508
Hazardous Locations CLASS 1; DIVISION 2; GROUPS A/B/C/D; T4 -- ISA 12.12.01
CE (2004/108/EC) -- EN 61000-6-4 / EN 61000-6-2
Galvanic isolation on sub-network -- EN 60950-1
Electrostatic discharge -- EN 61000-4-2
Electromagnetic RF fields -- EN 61000-4-3
Fast Transients -- EN 61000-4-4
Surge protection -- EN 61000-4-5
RF conducted interference -- EN 61000-4-6
Emission -- CISPR 16-2-3

EU - Declaration of Conformity
- EN 61000-6-4(2019) Emission standard for industrial environment
- EN 55016-2-3(2017) (Class A)
- EN 55032(2015) (Class A)
- EN 61000-6-2(2019) Immunity for industrial environment
- EN 61000-4-2(2009)
- EN 61000-4-3(2020)
- EN 61000-4-4(2012)
- EN 61000-4-5(2014) + A1(2018)
- EN 61000-4-6(2014)

UK - Declaration of Conformity
- EN 61000-6-4(2007) + A1(2011) Emission standard for industrial environment
- EN 55016-2-3(2017) (Class A)
- EN 55032(2015) (Class A)
- EN 61000-6-2(2019) Immunity for industrial environment
- EN 61000-4-2(2009)
- EN 61000-4-3(2006) + A1(2008) + A2(2010)
- EN 61000-4-4(2012)
- EN 61000-4-5(2014) + A1(2018)
- EN 61000-4-6(2014)

Benefits

Integrate your serial RS-232/422/485 based industrial devices and equipment to a Modbus RTU control system without the need for any changes to the device -- Just connect & configure and you're done
The communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to Modbus RTU.
The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.
- The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting -- requiring a 24V power supply.
The Communicator is conformance tested to current Modbus RTU specifications guaranteeing network compatibility.

Convert almost any type of serial protocol
The Communicator is capable of converting almost any type of serial protocol such as Modbus RTU / ASCII / DF1 or any other type of proprietary Query/Response or Produce/Consume protocol.

- Convert almost any RS-232/422/485 Request/Response or Produce/Consume protocol in just a few minutes -- for example Modbus RTU / ASCII / DF1.
- Pre-defined for Modbus RTU to avoid the hassle of scripting and serial Modbus frame building with the 6-step Modbus RTU wizard.
- No hardware or software changes are required for the connected automation device
- Compatible with PLCs from leading manufacturers such as Siemens / Rockwell / Schneider Electric / etc.
- Complete protocol conversion performed by the Communicator with no PLC function blocks required
- Handy Save/Load function means a completed configuration can be re-used for many other installations
- Included "Anybus Configuration Manager" with flexible serial frame building capabilities
- Versions with Dual Port switched Ethernet allows for daisy chaining and eliminates the need for external switches
- Global free technical support and consultancy

Serial features
- No high level programming skills are needed to set up the Anybus Communicator as configuration is accomplished using the included easy to use Windows based ACM (Anybus Configuration Manager)
- Selectable RS-232/422/485 interface
- Pre-defined 6-step Modbus-RTU configuration wizard
- Selectable pre-loaded DF1 commands -- no scripting or serial frame building required
- Ability to configure ASCII or vendor specific protocols (Request/Response or Produce/Consume via a visual frame building interface
- Multi-language support for English / German / Spanish / Italian / French / Polish / Russian / Chinese and Japanese
- Handy Save/Load function allows for a completed configuration to be re-used for many other installations
- Password protection prevents unauthorized upload and download of configurations
- Serial Line Listener and In-built Checksum calculations for diagnostic and troubleshooting

Modbus RTU slave interface features
- Complete Modbus RTU slave functionality
- Max. 512bytes of Input and 512bytes of Output data
- Coil and Register access
- Configuration via on-board DIP switches
- Modbus RTU baudrate 12-57.6kbit/s
- 1 x D-sub 9-pin female network connector

Humidity

0-95% relative humidity (RH; non-condensing)
